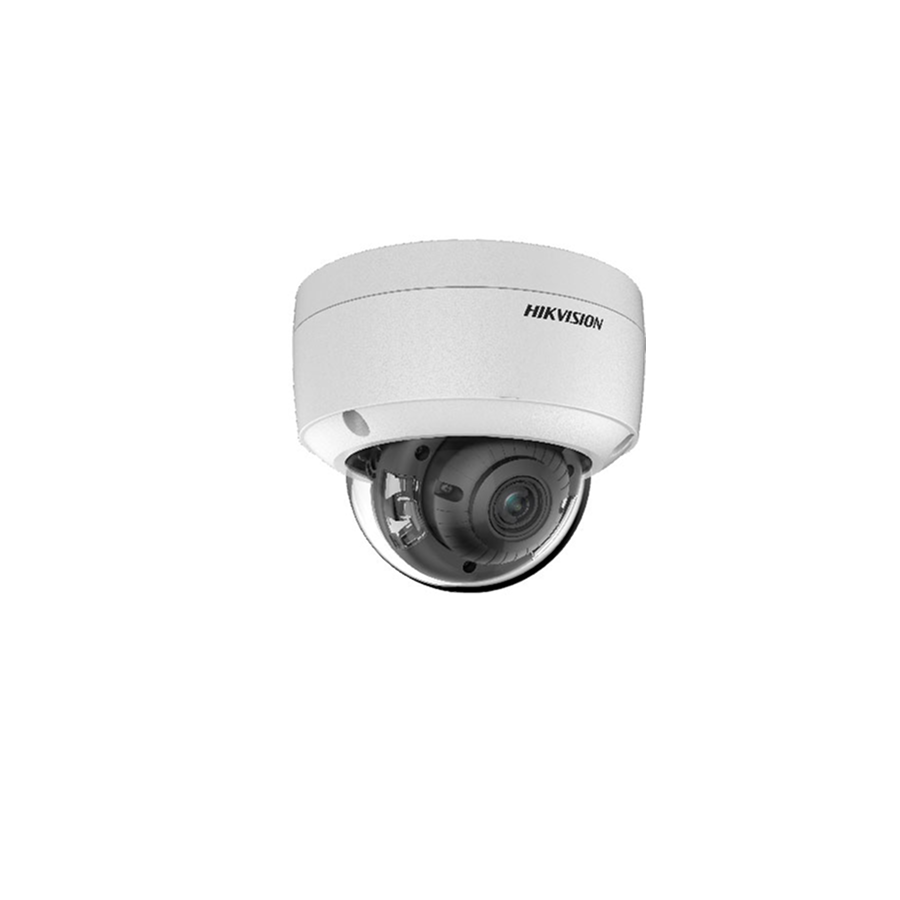

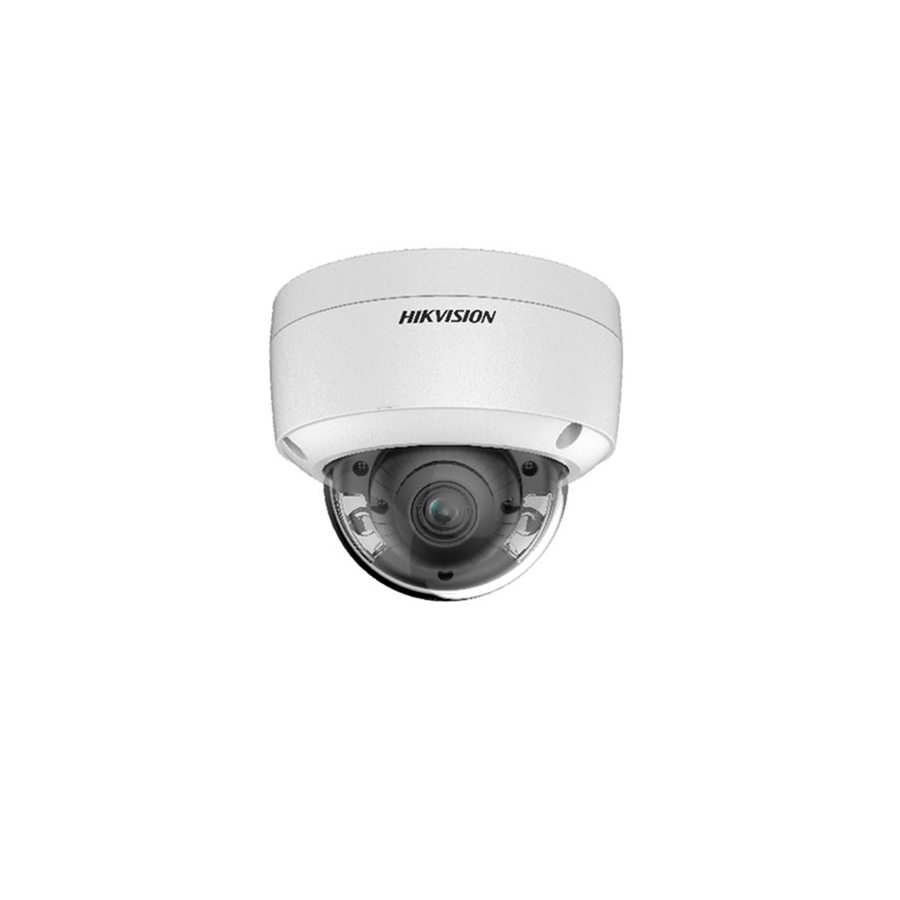

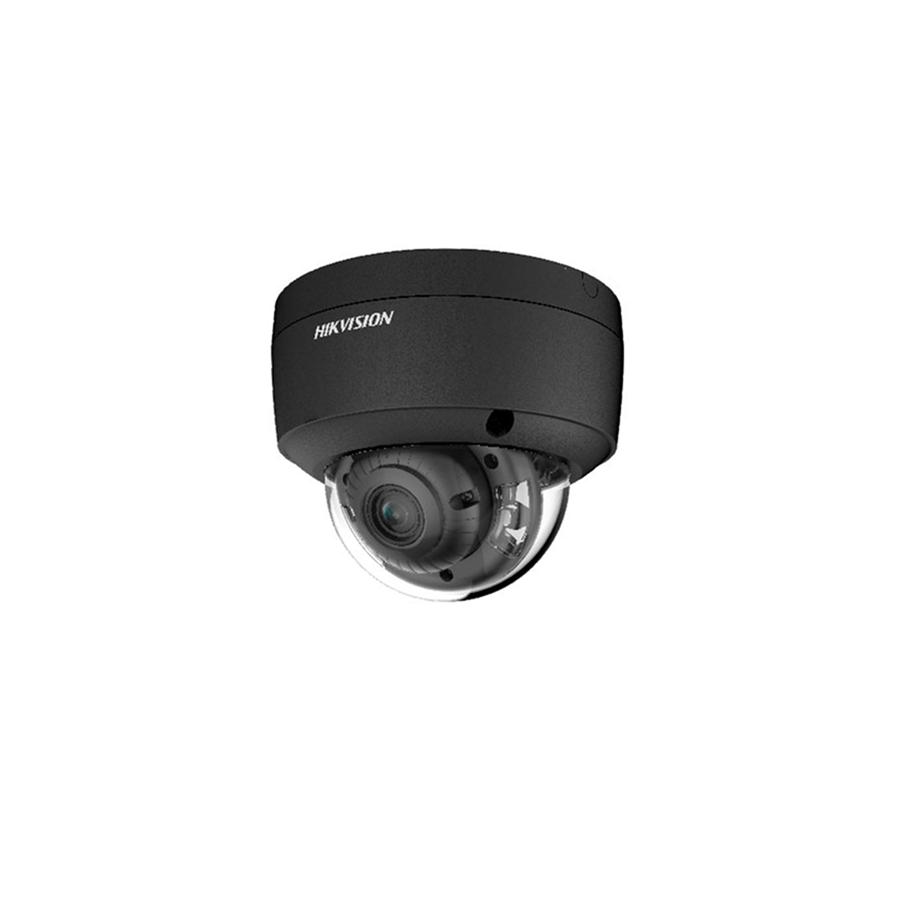

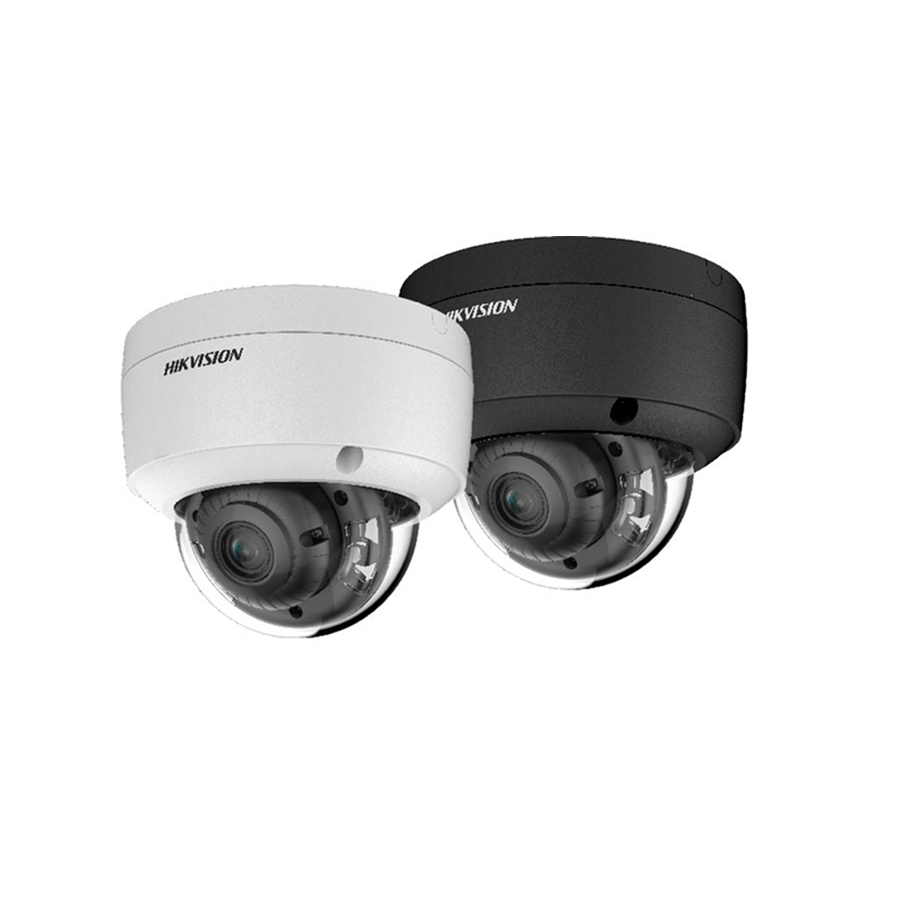

4 MP ColorVu Fixed Dome Network Camera
- High quality imaging with 4 MP resolution
- Efficient H.265+ compression technology
- Clear imaging against strong back light due to 130 dB WDR technology
- 24/7 colorful imaging
- Focus on human and vehicle targets classification based on deep learning
- -SU: Built-in microphone for real-time audio security, audio and alarm interface available
- Water and dust resistant (IP67) and vandal resistant (IK10)
DS-2CD2147G2-L(SU)
Product Overview
- High quality imaging with 4 MP resolution
- Efficient H.265+ compression technology
- Clear imaging against strong back light due to 130 dB WDR technology
- 24/7 colorful imaging
- Focus on human and vehicle targets classification based on deep learning
- -SU: Built-in microphone for real-time audio security, audio and alarm interface available
- Water and dust resistant (IP67) and vandal resistant (IK10)
Camera
| Image Sensor | 1/1.8″ Progressive Scan CMOS |
| Max. Resolution | 2688 × 1520 |
| Min. Illumination | 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | 24/7 Color imaging |
| Angle Adjustment | Pan: 0° to 355°, Tilt: 0° to 75°, Rotate: 0° to 355° |
Lens
| Lens Type | Fixed focal lens, 2.8 mm and 4 mm optional |
| Focal Length & FOV |
2.8 mm: Horizontal FOV 112°, Vertical FOV 61°, Diagonal FOV 134° 4 mm: Horizontal FOV 95°, Vertical FOV 51°, Diagonal FOV 115° |
| Lens Mount | M16 |
| Iris Type | Fixed |
| Aperture | F1.0 |
| Depth of Field |
2.8 mm: 2.5 m to ∞ 4 mm: 3.5 m to ∞ |
DORI
| DORI |
2.8 mm: D: 58 m, O: 23 m, R: 11 m, I: 2 m 4 mm: D: 77 m, O: 30 m, R: 15 m, I: 7 m |
Illuminator
| Supplement Light Type | White Light |
| Supplement Light Range | Up to 30 m |
| Smart Supplement Light | Yes |
Video
| Main Stream |
50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) |
| Sub-Stream |
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) |
| Video Compression |
Main stream: H.265/H.264/H.265+/H.264+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| Bit Rate Control | CBR/VBR |
Audio
| Audio Type | -SU: Mono sound |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Environment Noise Filtering | Yes |
Network
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, IPv4, IPv6, UDP, SSL/TLS, PPPoE, SNMP |
| Simultaneous Live View | Up to 6 channels |
| User/Host | Up to 32 users with 3 permission levels |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Image Parameters Switch | Yes |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Wide Dynamic Range (WDR) | 130 dB |
| SNR | ≥ 52 dB |
| Image Enhancement | BLC, HLC, 3D DNR |
General
| Power |
12 VDC ±25%, max. 5 W PoE: 802.3af, Class 3, max. 6.5 W |
| Dimension | Ø121.4 mm × 100.1 mm |
| Weight | Approx. 600 g |
| Storage Conditions | -30 °C to 60 °C, Humidity 95% or less |
| General Function | Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter |
Approval
| EMC | FCC, CE-EMC, RCM, IC |
| Safety | UL, CB, CE-LVD, LOA |
| Environment | CE-RoHS, WEEE, Reach |
| Protection | IP67, IK10 |
*Product performance is based on testing in a controlled environment. Results may vary due to external and environmental factors.
