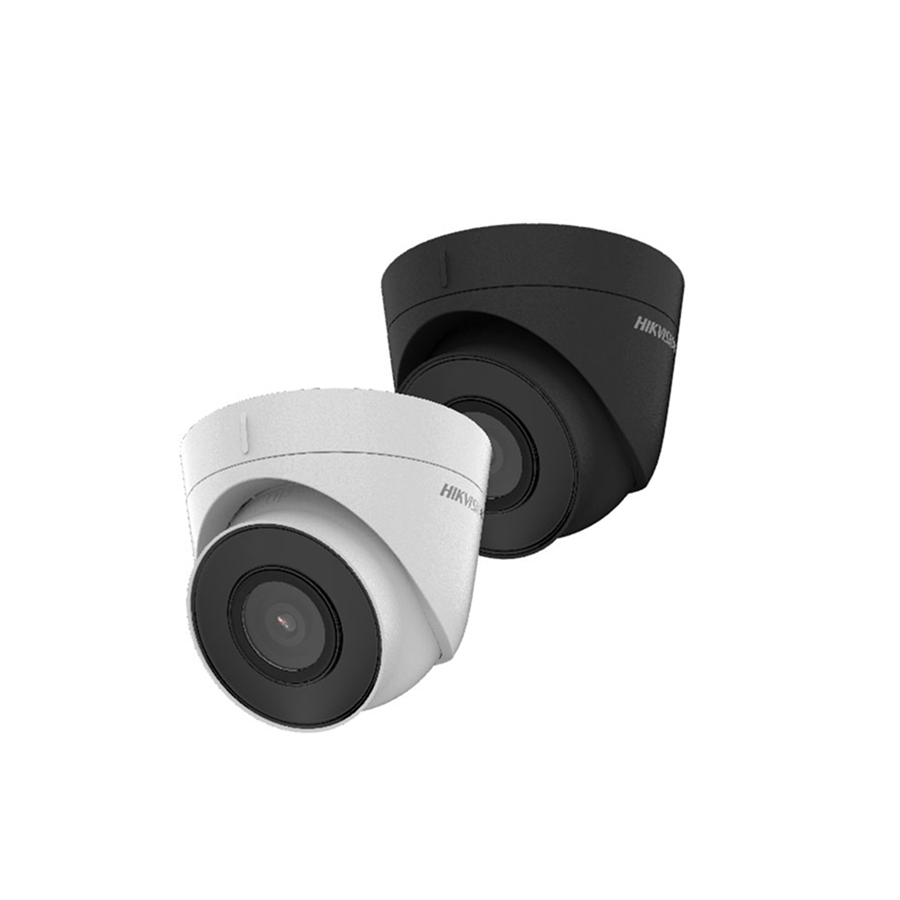

4 MP MD 2.0 Fixed Turret Network Camera

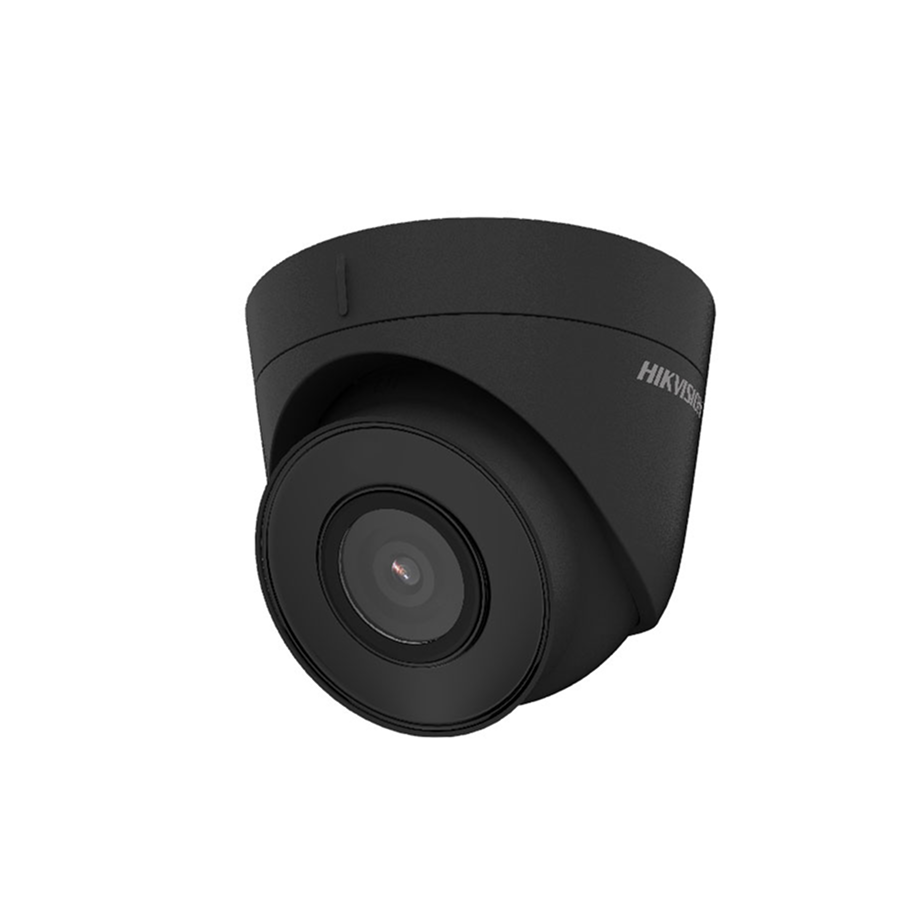

4 MP MD 2.0 Fixed Turret Network Camera - Image 2

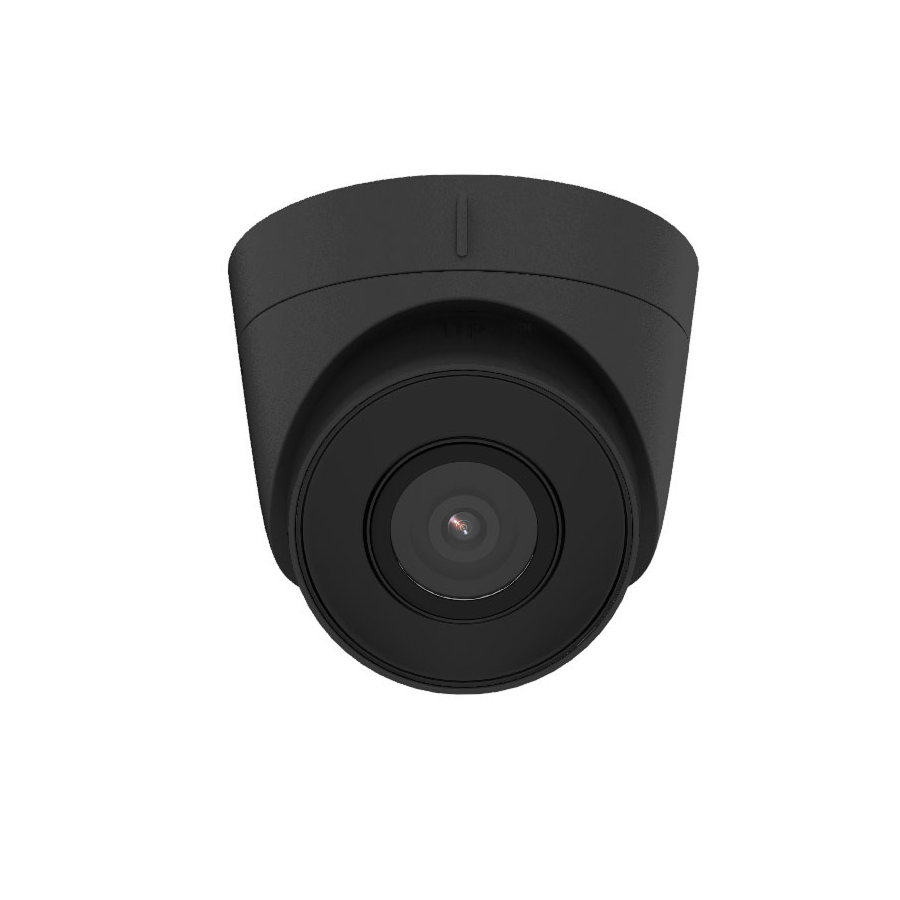

4 MP MD 2.0 Fixed Turret Network Camera - Image 3

4 MP MD 2.0 Fixed Turret Network Camera

  • High quality imaging with 4 MP resolution
  • Support Human and Vehicle Detection
  • Water and dust resistant (IP67)
  • Clear imaging even with strong back lighting due to 120 dB WDR
  • Efficient H.265+ compression technology
  • EXIR 2.0: advanced infrared technology with long IR range
  • Support on-board storage up to 256GB (SD card slot)(Optional)
  • Built-in microphone for real-time audio security(Optional)

DS-2CD1343G2-I(UF)

Request a Quote

Product Overview

  • High quality imaging with 4 MP resolution
  • Support Human and Vehicle Detection
  • Water and dust resistant (IP67)
  • Clear imaging even with strong back lighting due to 120 dB WDR
  • Efficient H.265+ compression technology
  • EXIR 2.0: advanced infrared technology with long IR range
  • Support on-board storage up to 256GB (SD card slot)(Optional)
  • Built-in microphone for real-time audio security(Optional)
Camera
Image Sensor 1/3″ Progressive Scan CMOS
Max. Resolution 2560 × 1440
Min. Illumination Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR
Shutter Time 1/3 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
Lens
Lens Type Fixed focal lens, 2.8 mm and 4 mm optional
Focal Length & FOV 2.8 mm, horizontal FOV 99°, vertical FOV 55°, diagonal FOV 116°
4 mm, horizontal FOV 76°, vertical FOV 41°, diagonal FOV 90°
Lens Mount M12
Iris Type Fixed
Aperture F2.0
DORI
DORI 2.8 mm, D: 59 m, O: 23 m, R: 11 m, I: 5 m
4 mm, D: 79 m, O: 31 m, R: 15 m, I: 7 m
Illuminator
Supplement Light Type IR
Supplement Light Range Up to 30 m
Smart Supplement Light Yes
IR Wavelength 850 nm
Video
Main Stream 50 Hz: 20 fps (2560 × 1440), 25 fps (1920 × 1080, 1280 × 720)
60 Hz: 20 fps (2560 × 1440), 24 fps (1920 × 1080, 1280 × 720)
Sub-Stream 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)
Video Compression Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Video Bit Rate 32 Kbps to 8 Mbps
Audio
Audio Type -U: Mono sound
Environment Noise Filtering -U: Yes
Network
Security Password protection, watermark, digest authentication, security audit log, host authentication (MAC address)
Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
Wide Dynamic Range (WDR) 120 dB
SNR ≥ 52 dB
Interface
Ethernet Interface 1 RJ45 10/100 M self-adaptive Ethernet port
On-Board Storage Supports microSD/microSDHC/microSDXC card up to 256 GB
Event
Basic Event Motion detection, video tampering alarm, exception
General
Power 12 VDC ±25%, max. 5 W
PoE: 802.3af, Class 3, max. 6.5 W
Material Metal & Plastic
Dimension Ø110 mm × 85.3 mm
Weight Approx. 330 g / 340 g
Approval
EMC FCC Part 15, CE-EMC, RCM, ICES-003, KC
Safety UL 62368-1, IEC 62368-1, CE-LVD, BIS
Environment CE-RoHS(2011/65/EU),WEEE(2012/19/EU), Reach(Regulation(EC)No 1907/2006)
Protection IP67: IEC 60529-2013

*Product performance is based on testing in a controlled environment. Actual results may vary.
