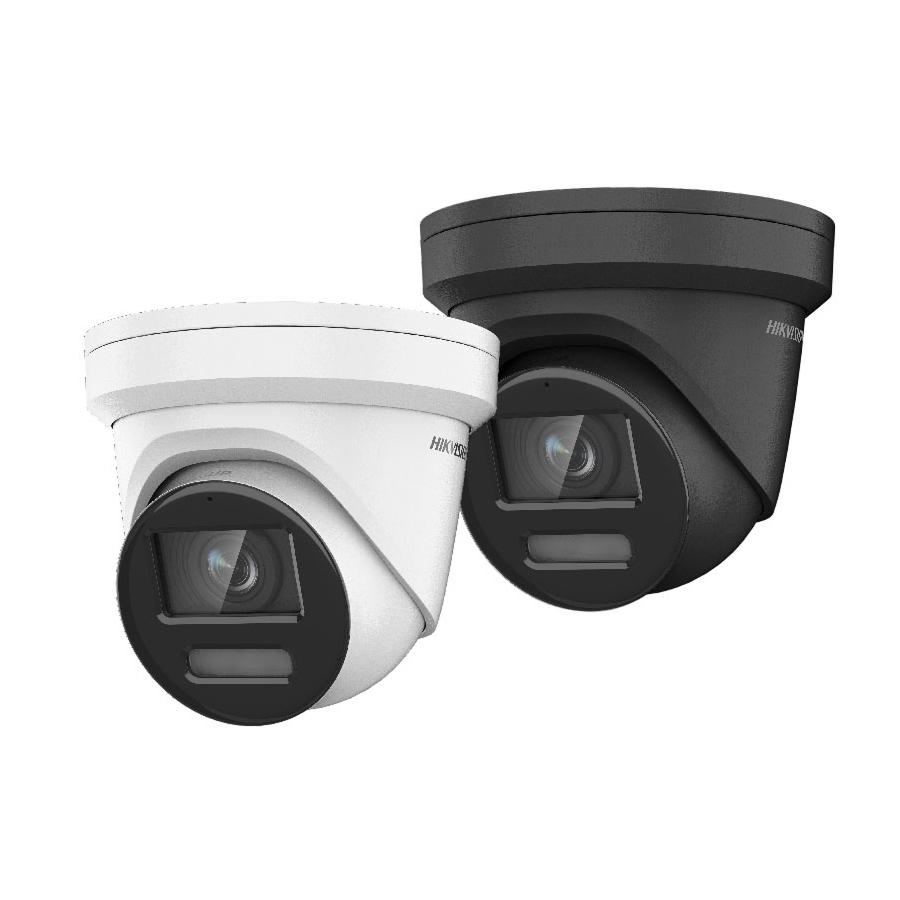

8 MP ColorVu Fixed Turret Network Camera

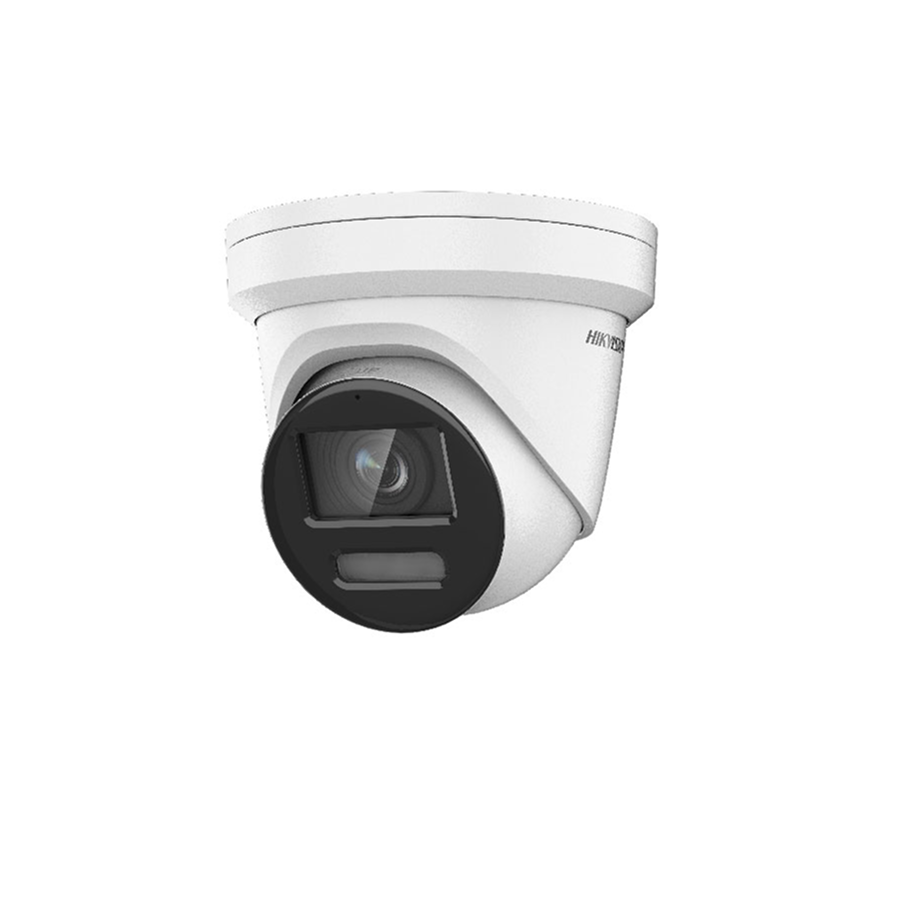

8 MP ColorVu Fixed Turret Network Camera - Image 2

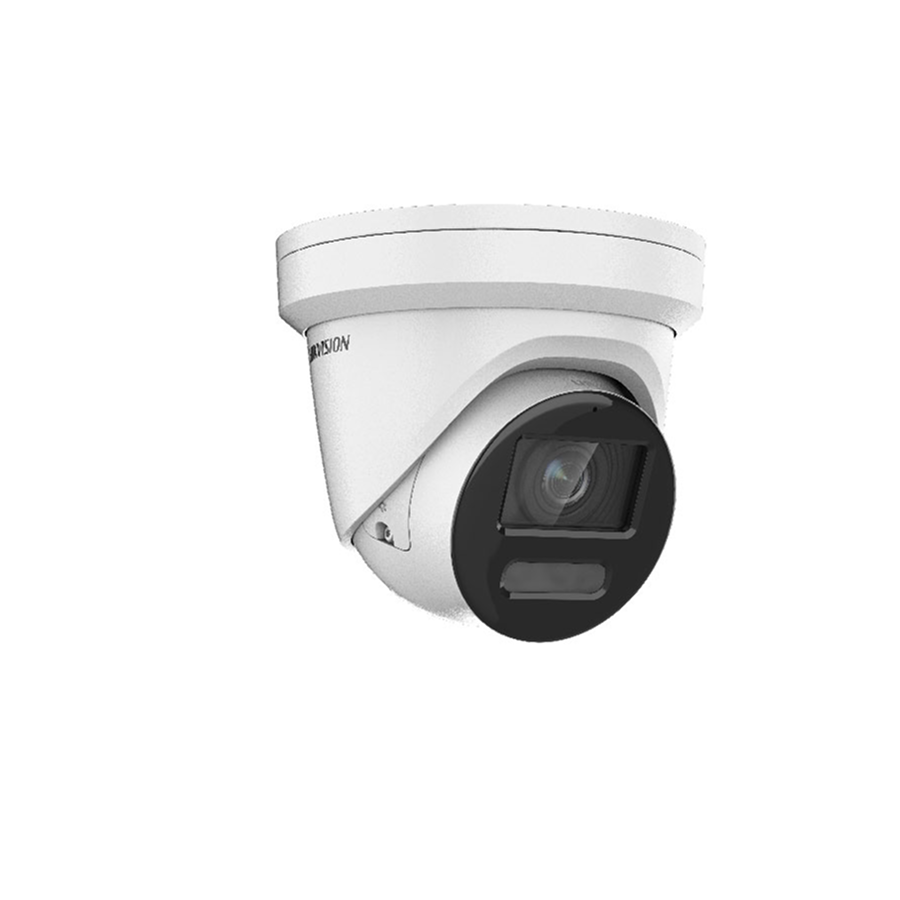

8 MP ColorVu Fixed Turret Network Camera - Image 3

8 MP ColorVu Fixed Turret Network Camera

  • High quality imaging with 8 MP resolution
  • Efficient H.265+ compression technology
  • Clear imaging against strong backlight due to 130 dB WDR technology
  • Built-in microphone for real-time audio security(-U)
  • Focus on human and vehicle targets classification based on deep learning
  • 24/7 colorful imaging
  • Water and dust resistant (IP67)

DS-2CD2387G2-L(U)

Request a Quote

Product Overview

  • High quality imaging with 8 MP resolution
  • Efficient H.265+ compression technology
  • Clear imaging against strong backlight due to 130 dB WDR technology
  • Built-in microphone for real-time audio security(-U)
  • Focus on human and vehicle targets classification based on deep learning
  • 24/7 colorful imaging
  • Water and dust resistant (IP67)
Camera
Image Sensor 1/1.2″ Progressive Scan CMOS
Max. Resolution 3840 × 2160
Min. Illumination Color: 0.0005 Lux @ (F1.0, AGC ON)
Shutter Speed 1/3 s to 1/100,000 s
Day & Night 24/7 Color Imaging
Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°
Lens
Lens Type Fixed focal lens, 2.8 mm and 4 mm optional
Focal Length & FOV 2.8 mm: Horizontal FOV 102°, Vertical FOV 52°, Diagonal FOV 124°
4 mm: Horizontal FOV 88°, Vertical FOV 47°, Diagonal FOV 104°
Lens Mount M16
Iris Type Fixed
Aperture F1.0
DORI
DORI Distance 2.8 mm: D: 96 m, O: 38 m, R: 19 m, I: 9 m
4 mm: D: 102 m, O: 40 m, R: 20 m, I: 10 m
Illuminator
Supplement Light Type White Light
Supplement Light Range Up to 30 m
Smart Supplement Light Yes
Video
Main Stream 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 24 fps (3840 × 2160), 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Video Compression Main Stream: H.265/H.264/H.264+/H.265+
Sub-stream: H.265/H.264/MJPEG
Third Stream: H.265/H.264
Video Bit Rate 32 Kbps to 16 Mbps
Audio
Environment Noise Filtering Yes
Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
Network
Simultaneous Live View Up to 6 channels
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP,
UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour,
SSL/TLS, PPPoE, SNMP
Wide Dynamic Range (WDR) 130 dB
Image Enhancement BLC, HLC, 3D DNR
Interface
Ethernet Interface 1 RJ45 10/100 M self-adaptive Ethernet port
On-Board Storage Supports microSD/SDHC/SDXC/TF card up to 256 GB
General
Material Cover: Metal, Main Body: Metal
Dimension Ø138.3 mm × 120.1 mm (Ø5.4″ × 4.7″)
Weight Approx. 870 g (1.9 lb.)
Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F), Humidity 95% or less
Approval
EMC FCC, CE-EMC, RCM, IC, KC
Safety UL, CB, CE-LVD
Environment CE-RoHS(2011/65/EU),WEEE(2012/19/EU), Reach(Regulation(EC)No 1907/2006)
Protection IP67: IEC 60529-2013

*Product performance is based on testing in a controlled environment. Results may vary due to environmental factors.
