AL-GSM40C GSM/SMS Home Alarm System
This GSM/SMS Alarm system can be used in homes/houses, apartments, villas, hotels, o ces, public buildings, etc.
Product Overview
This GSM/SMS Alarm system can be used in homes/houses, apartments, villas, hotels, o ces, public buildings, etc.
Key Features & Highlights
- GSM/SMS Home Alarm System, Smart Phone APP control
- 99 Zones, each zone can be renamed
- 10 zones are available for Voice Recording
- High-definition voice
- The Standard ADMECO Contact ID Protocol
- 99 wireless zones, 2 wired zones
- Up to 6 phone numbers to Dial out & 3 SMS Mobile numbers to send SMS on alarm.
- Remote Intercom
- Up to 3 groups of Timely Arm/Disarm.
- Easy to code with Sensors/Detectors
- Remotely Arm/ Disarm /monitor / Intercom
- Programming for zones.
- Voice prompts from Siren while arming/disarming by the keyfob.
- Internal Re-Chargeable Battery for the back-up of power failure.
- Category: Alarm Systems

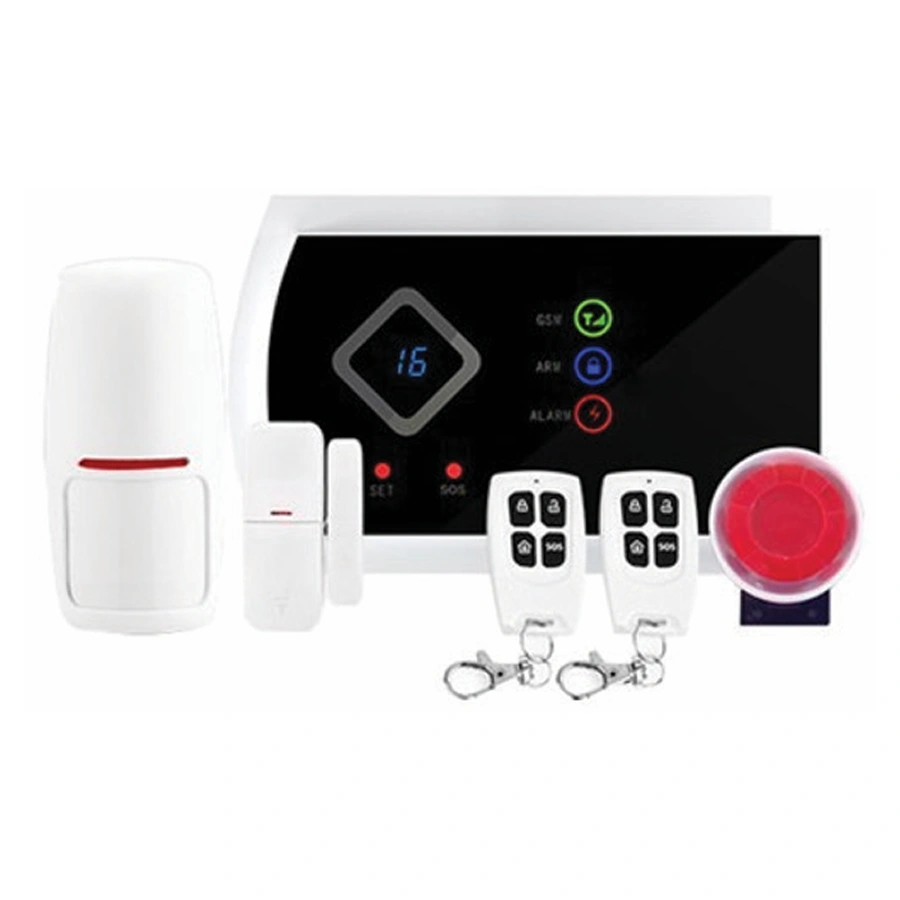

Kit Packing List:
- Alarm Host(Main unit) ×1
- Wireless door/window magnetic contact ×1
- Wireless PIR Detector ×1
- Siren(More than 110DB) ×1
- Remote controller ×2
- AC adapter ×1
- English user manual ×1
Technical Specifications
| Input Voltage | AC100–240V, 50/60Hz |
|---|---|
| Output Voltage | DC12V, 1A |
| Backup Battery | 7.2V Lithium Battery |
| Static Current | ≤ 40mA |
| Alarm Current | ≤ 300mA |
| Radio Frequency | 315/433MHz (±75KHz), 2262/4.7MΩ, 1527/300K |
| GSM Working Frequency | 850/900/1800/1900MHz |
| Siren Volume | 110dB |
| Maximum Stored Phone Numbers | 6 Alarm Phone Numbers and 3 SMS Numbers |
| Supported Accessories | 99 Wireless Sensors, 2 Wired Sensors, and 8 Wireless Remote Controls |
| Operating Temperature | -10°C to +50°C |
| Humidity | ≤ 85% |
