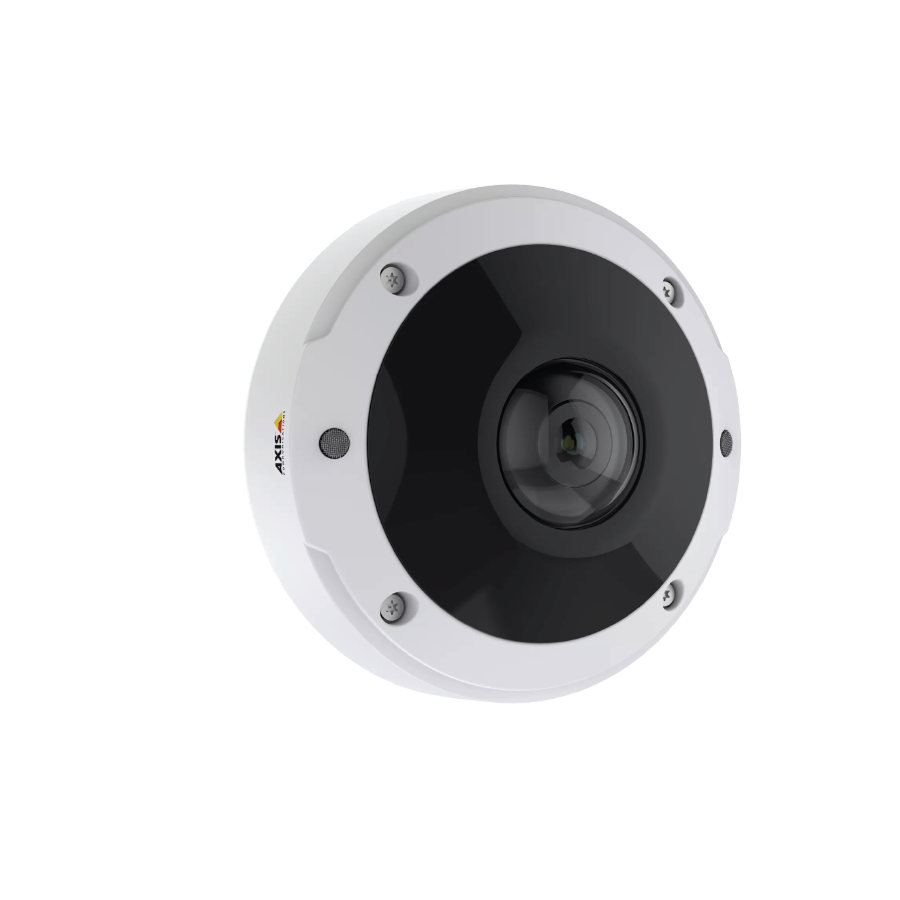

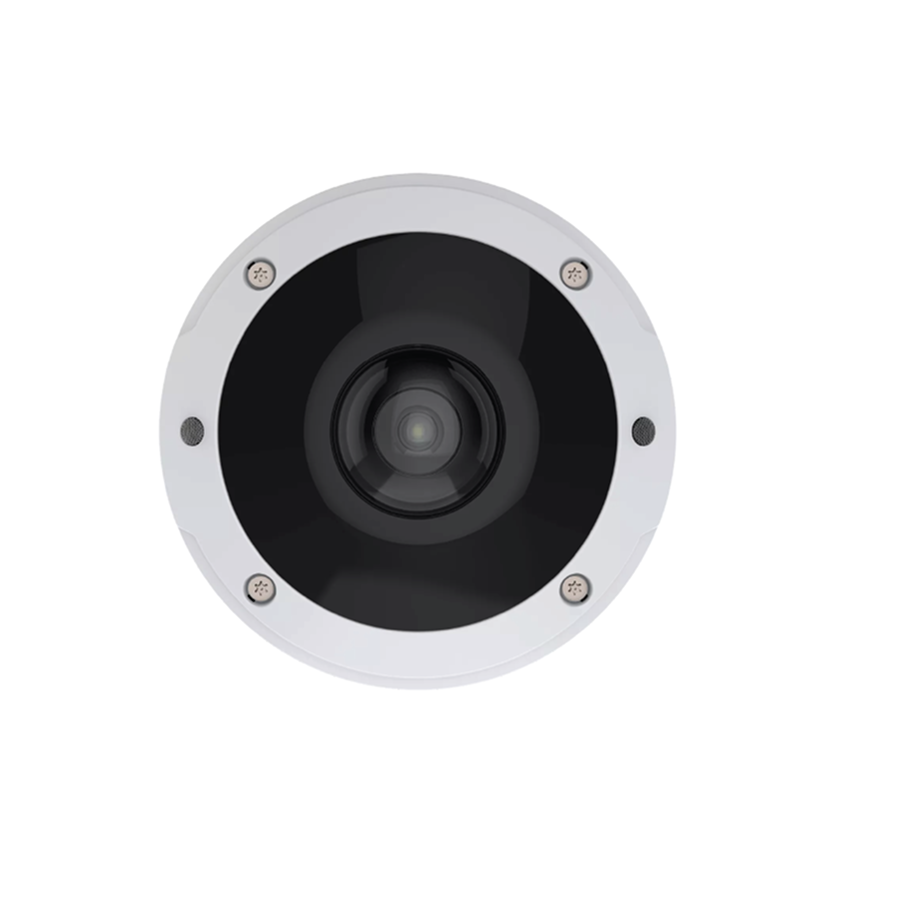

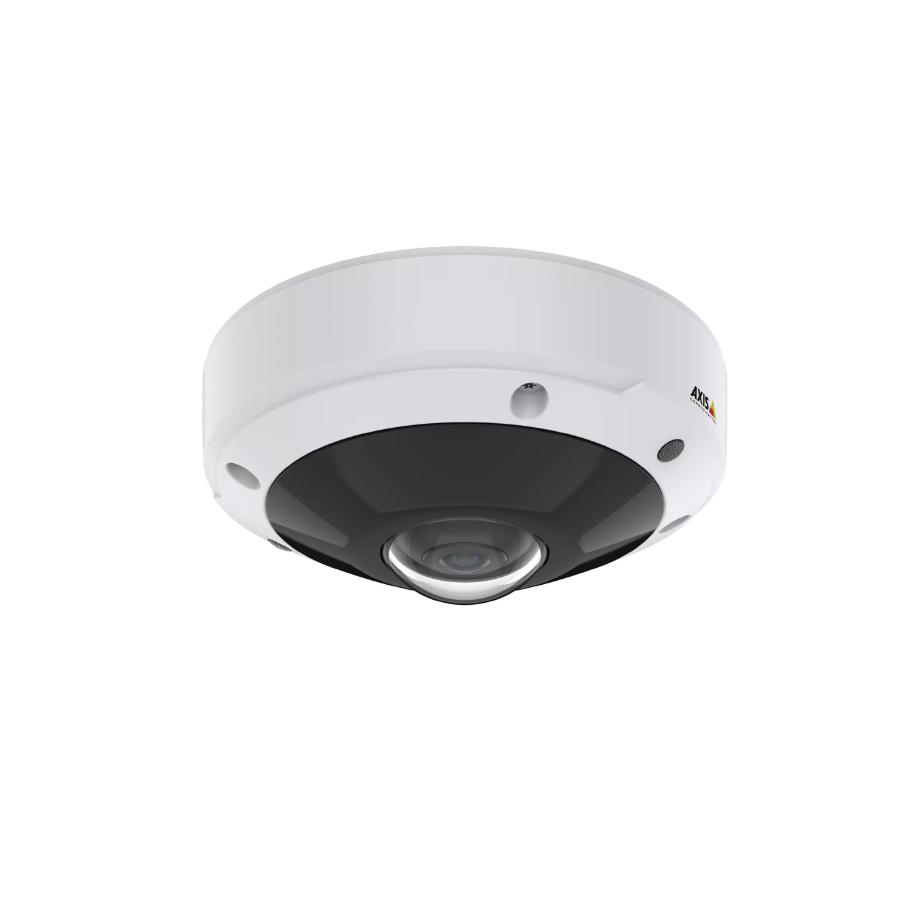

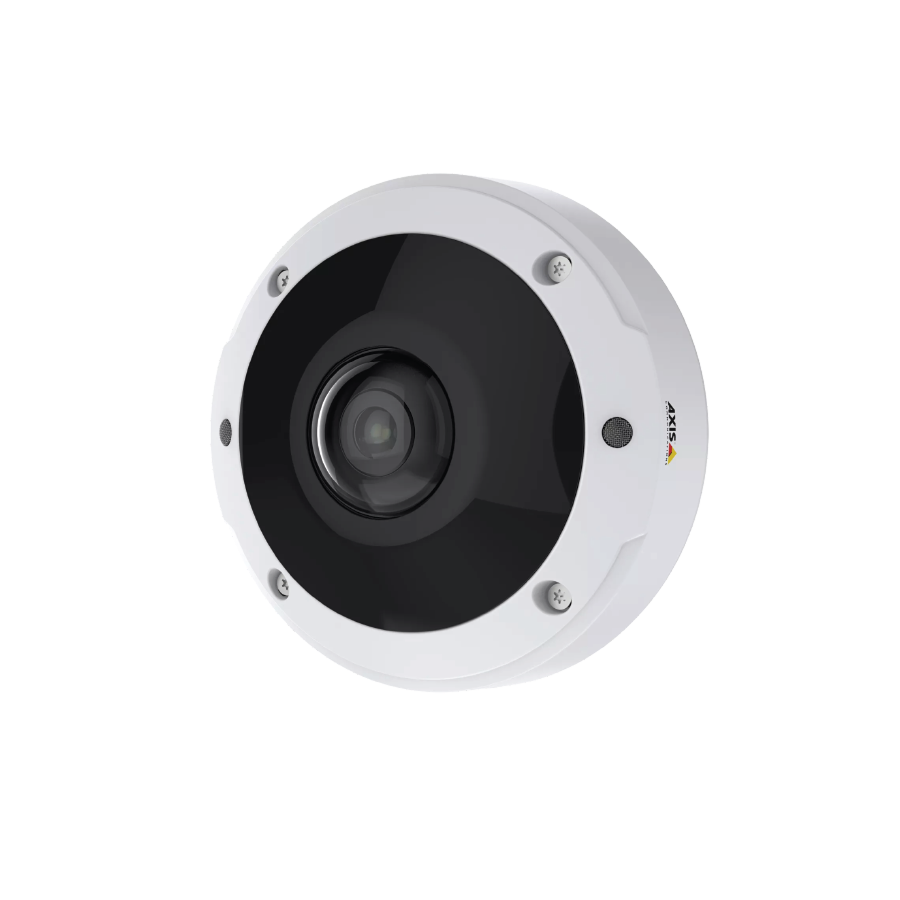

AXIS M3077-PLVE Network Camera (6 MP & 6 MP with Audio Capture options)
With its 6 MP sensor, AXIS M3077-PLVE offers excellent image quality and a complete 180° or 360° overview, indoors or out, around the clock. It features two built-in microphones allowing for audio surveillance and detection. This compact mini dome offers dewarped views such as panorama, quad, corner, and corridor views directly from the camera. It includes Axis Lightfinder and Axis Forensic WDR for true colors and great details in challenging light or near darkness. And, Axis OptimizedIR for surveillance in pitch darkness.
$1,080.93
Product Overview
With its 6 MP sensor, AXIS M3077-PLVE offers excellent image quality and a complete 180° or 360° overview, indoors or out, around the clock. It features two built-in microphones allowing for audio surveillance and detection. This compact mini dome offers dewarped views such as panorama, quad, corner, and corridor views directly from the camera. It includes Axis Lightfinder and Axis Forensic WDR for true colors and great details in challenging light or near darkness. And, Axis OptimizedIR for surveillance in pitch darkness.
What’s Included
- M3077-PLVE Network Camera
- Installation Guide
- Windows Decoder 1-user license
- Drill Hole Template
- Cable Gaskets
- Connector Guard
- I/O Connector
- RESISTORX TR20 bit
- and more below
General Information
| Brand Name | AXIS Communications | ||
| Manufacturer Part Number | 02018-001 | Product Model | M3077 |
| Product Name | AXIS M3077-PLVE | Product Type | Fixed dome cameras |
Technical Information
| Aperture | f/2.0 | Built-in Microphone | Yes |
| Connectivity Technology | Wired | Effective Camera Resolution | 6MP |
| Maximum Frame Rate | 60fps | Night Vision | Yes |
Camera
| Image Sensor Type | CMOS | Night Vision Distance | 65.62 ft |
| Wide Dynamic Range | Yes |
Display & Graphics
| Image Sensor Size | 1/1.8″ | Maximum Video Resolution | 2016 x 2016 |
Environmental Conditions
| Maximum Operating Temperature | 122°F (50°C) | Minimum Operating Temperature | -40°F (-40°C) |
| Operating Temperature | -40-50°C |
Interfaces / Ports
| Network (RJ-45) | Yes |
Lens
| Focal Length | 1.56mm | Lens Included | Yes |
Memory
| Memory Card Supported | Yes | SD Card Slot | Yes |
Physical Characteristics
| Color | White | Form Factor | Dome |
| Height | 2.6″ | Weight | 1.54lb |
Power Description
| Maximum Power Consumption | 11.9W | Power over Ethernet (PoE) | Yes |
Warranty
| Limited Warranty | 5-Year |
Miscellaneous
| Certifications |
CISPR 35, EAC, EN 55024, EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), KC KN32 Class A, KC KN35, RCM AS/NZS CISPR 32 Class A, VCCI Class A |
| Certifications & Standards | ONVIF G, ONVIF M, ONVIF S, ONVIF T |
| Country of Origin | TH |
| Environmental Certification |
IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC 60721-3-5 Class 5M3, IEC/EN 60529 IP66, IEC/EN 62262 IK10, NEMA 250 Type 4X, NEMA TS 2 (2.2.7-2.2.9) |
| Features |
Audio Detection, Auto Gain Control, Automatic White Balance, Built-in IR LED, Built-in Microphone, Day/Night, Motion Detection, Multi-view Stream, Noise Reduction, Privacy Masking, PTZ, Removable IR Cut-off Filter, SD Card Local Storage, Tampering Alarm, Video Management System, Wide Dynamic Range |
| Impact Protection Rating | IK08 |
| Indoor/Outdoor | Outdoor |
| Package Contents |
|
