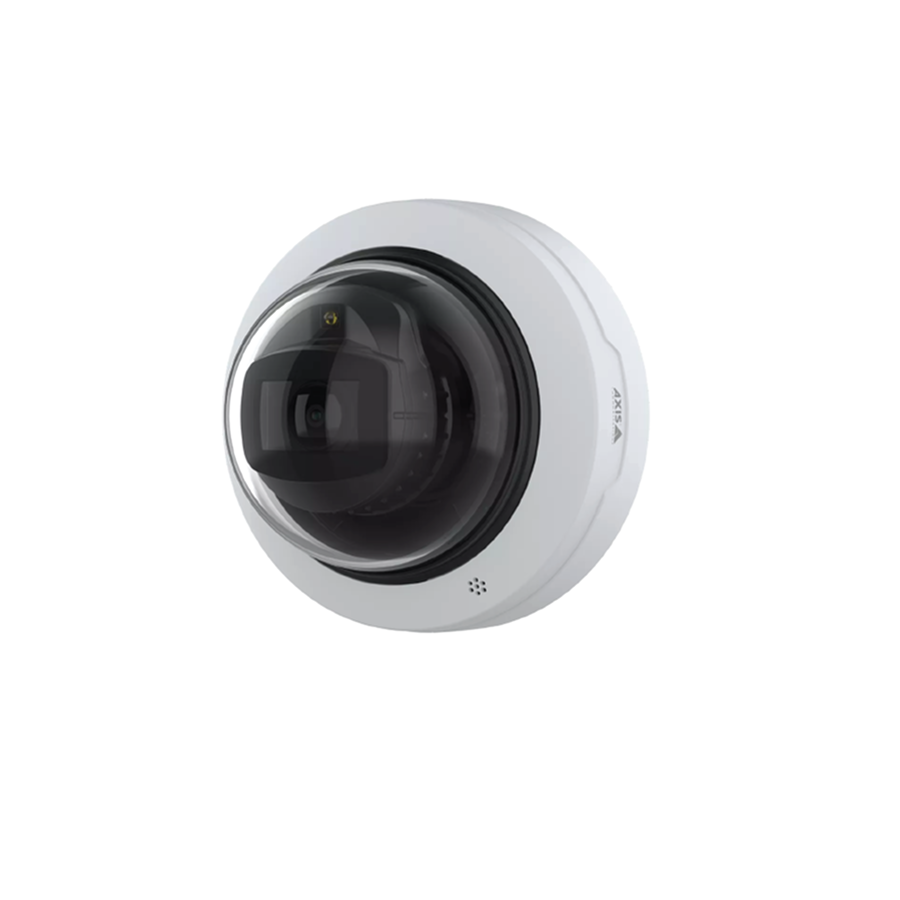

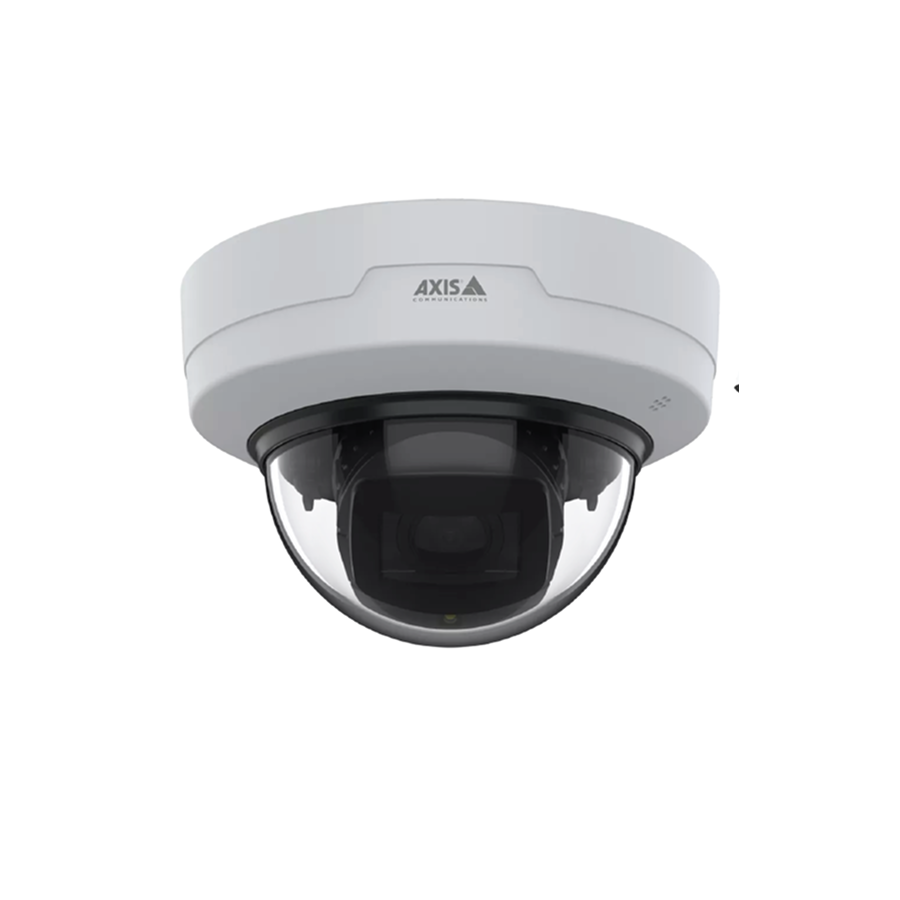

AXIS M4225-LVE Dome Camera (options: 2 MP, 5 MP & 8 MP)
AXIS M4225-LVE delivers great image quality in 2 MP. Featuring a varifocal lens with a 100°–38° field of view and remote zoom and focus capabilities, it can be adapted for close-ups and overviews without the need for hands-on fine tuning.
Great Images, Every Time
AXIS M4225-LVE delivers great image quality in 2 MP. Featuring a
varifocal lens with a 100°–38° field of view and remote zoom and focus capabilities,
it can be adapted for close-ups and overviews without the need for hands-on fine tuning.
Thanks to Lightfinder 2.0 and Forensic WDR, it provides clear details even in
challenging light conditions.
OptimizedIR allows for surveillance in total darkness without the need for extra lighting.
Furthermore, Axis Zipstream with support for H.264 and H.265 significantly reduces
bandwidth and storage requirements without compromising image quality.
| Image Quality | 2 MP Resolution |
| Lens Type | Varifocal Lens |
| Field of View | 100°–38° |
| Zoom & Focus | Remote Zoom and Focus |
| Low-Light Technology | Lightfinder 2.0 |
| Wide Dynamic Range | Forensic WDR |
| IR Technology | OptimizedIR |
| Video Compression | H.264 / H.265 |
| Bandwidth Optimization | Axis Zipstream |
Powerful with Strong Security
Featuring a deep learning processing unit (DLPU), AXIS M4225-LVE enables advanced
features and powerful analytics directly on the edge.
It comes preinstalled with AXIS Object Analytics to detect, classify, track,
and count objects such as humans and vehicles.
The camera also includes an acoustic sensor, making it ready for AXIS Audio Analytics
to detect and classify specific sounds as well as sudden changes in sound volume.
In addition, Axis Edge Vault provides hardware-based cybersecurity protection
to safeguard the device and protect sensitive information from unauthorized access.
It also offers FIPS 140-3 Level 3 certified secure cryptographic key storage and operations.
| Processor | Deep Learning Processing Unit (DLPU) |
| Analytics | AXIS Object Analytics |
| Object Detection | Humans and Vehicles |
| Audio Features | AXIS Audio Analytics |
| Sensor Type | Acoustic Sensor |
| Cybersecurity Platform | Axis Edge Vault |
| Security Certification | FIPS 140-3 Level 3 |
| Security Features | Secure Cryptographic Key Storage and Operations |
Small and Discreet
This compact and discreet dome camera blends seamlessly into any environment,
making it ideal for unobtrusive surveillance applications.
A smoked dome accessory is also available, allowing you to disguise the direction
the camera is pointing for added discretion.
The camera is IP66- and IK10-rated, ensuring strong protection against dust, water,
and impact.
It supports an operating temperature range from -30°C to 50°C
(-22°F to 122°F), making it suitable for demanding indoor and outdoor environments.

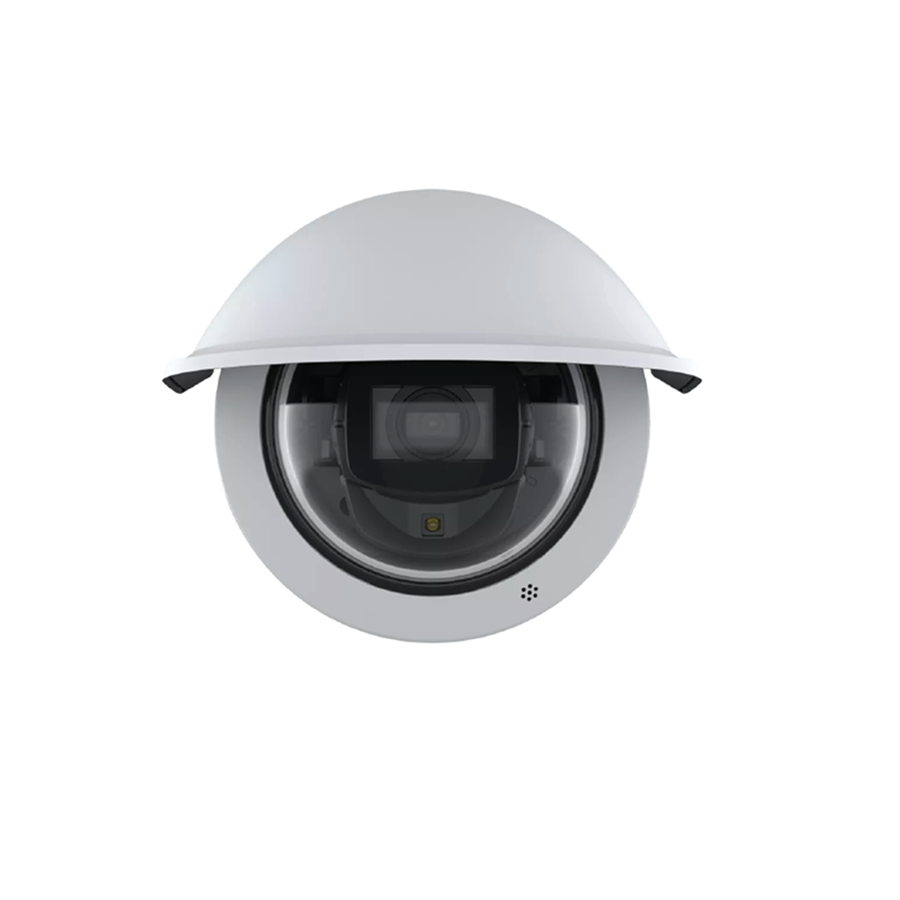

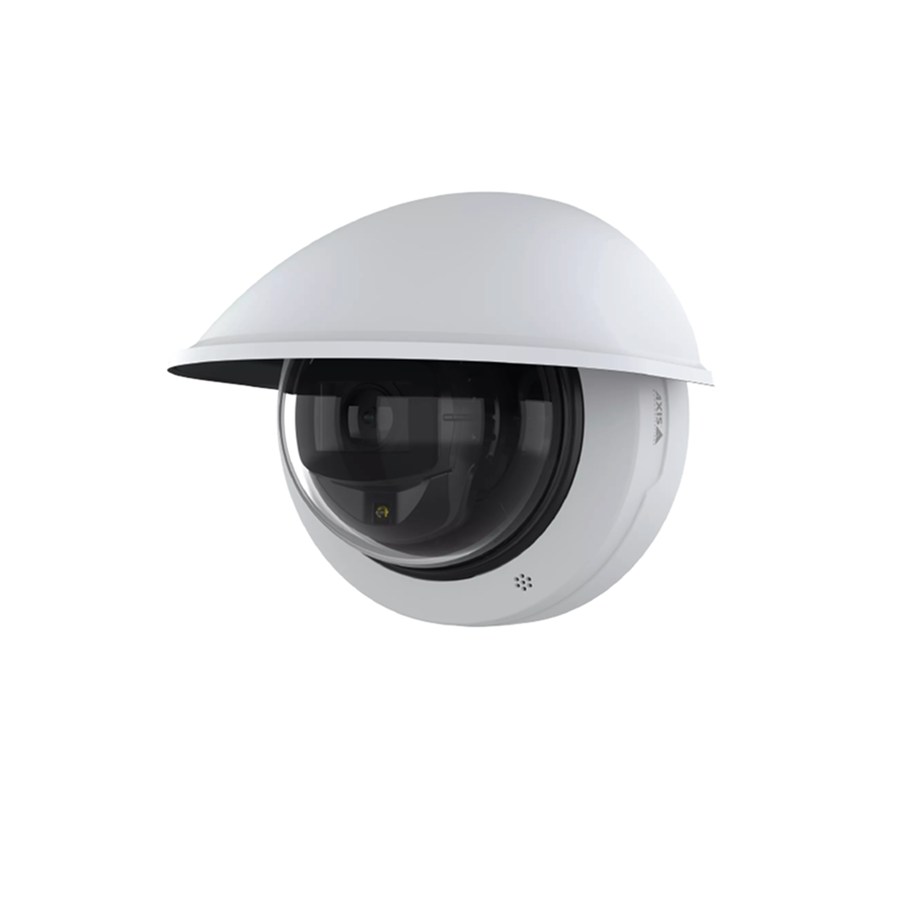

Additionally, the included weathershield provides extra environmental protection.
| Camera Type | Compact Dome Camera |
| Design | Small and Discreet |
| Optional Accessory | Smoked Dome Cover |
| Ingress Protection | IP66 Rated |
| Impact Protection | IK10 Rated |
| Operating Temperature | -30°C to 50°C (-22°F to 122°F) |
| Environmental Protection | Included Weathershield |
Technical Specifications
Variants: AXIS M4225-LVE Dome Camera
Camera
| Specification | Value |
|---|---|
| Image sensor | CMOS |
| Image sensor size | 1/2.8″ |
| Lightfinder | Lightfinder 2.0 |
| Wide dynamic range | WDR |
| Min illumination (Color) | 0.12 lux |
| Min illumination (B/W) | 0.03 lux |
Video
| Specification | Value |
|---|---|
| Max video resolution | 1920×1080 |
| Max frames per second | 25/30 |
| Day and Night functionality | Yes |
| Electronic image stabilization | – |
Lens
| Specification | Value |
|---|---|
| Focal length | 3.2 – 7.2 mm |
| Horizontal field of view | 100° – 38° |
| Vertical field of view | 52° – 20° |
Compression
| Specification | Value |
|---|---|
| Zipstream | Yes |
| H.264 | Baseline, High, Main |
| H.265 | Yes |
| AV1 | – |
Audio
| Specification | Value |
|---|---|
| Audio Support | Yes |
| Built-in microphone | – |
Network
| Specification | Value |
|---|---|
| PoE Class | 3 |
Security
| Specification | Value |
|---|---|
| Signed OS | Yes |
| Secure boot | Yes |
| Secure keystore | Secure Element (CC EAL6+) |
| Axis Edge Vault | Yes |
General
| Specification | Value |
|---|---|
| Remote focus | Yes |
| Remote zoom | Yes |
| Built-in IR | Yes |
| Local storage (memory card slot) | Yes |
| Operating temperature | -30°C to 50°C |
| Outdoor Ready | Yes |
| Vandal rating | IK10 |
| IP rating | IP66 |
| Designed for repaint | Yes |
| Sustainability | BFR/CFR free, PVC free |
