Product Overview

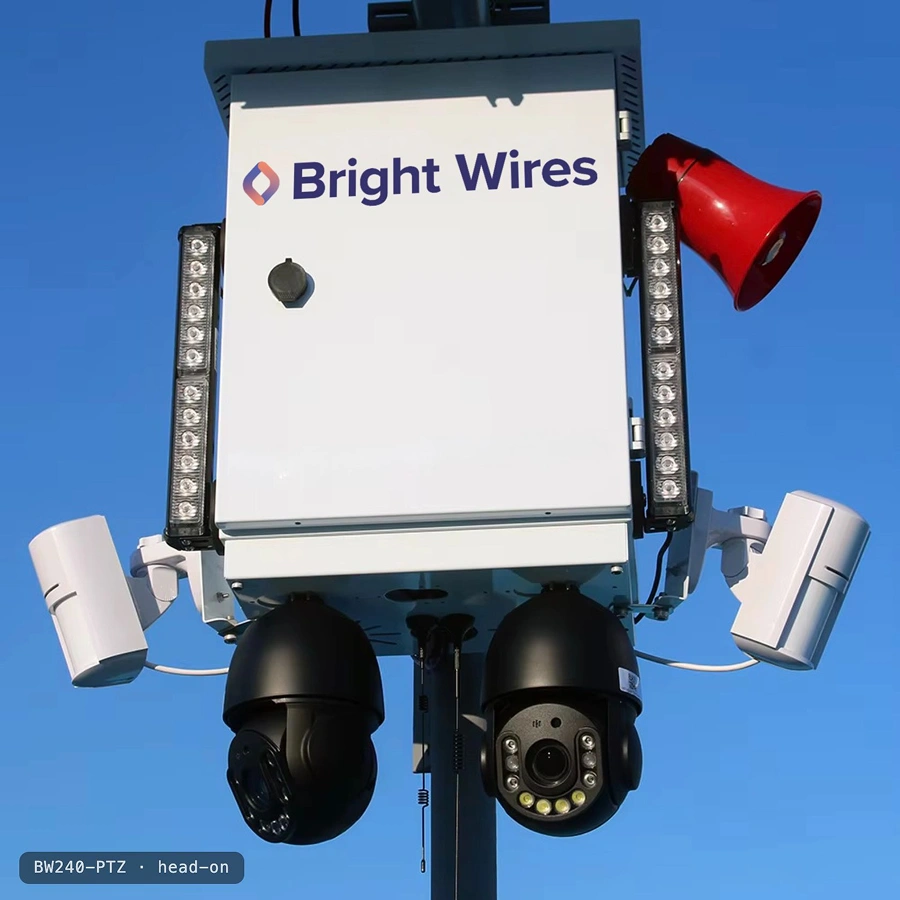

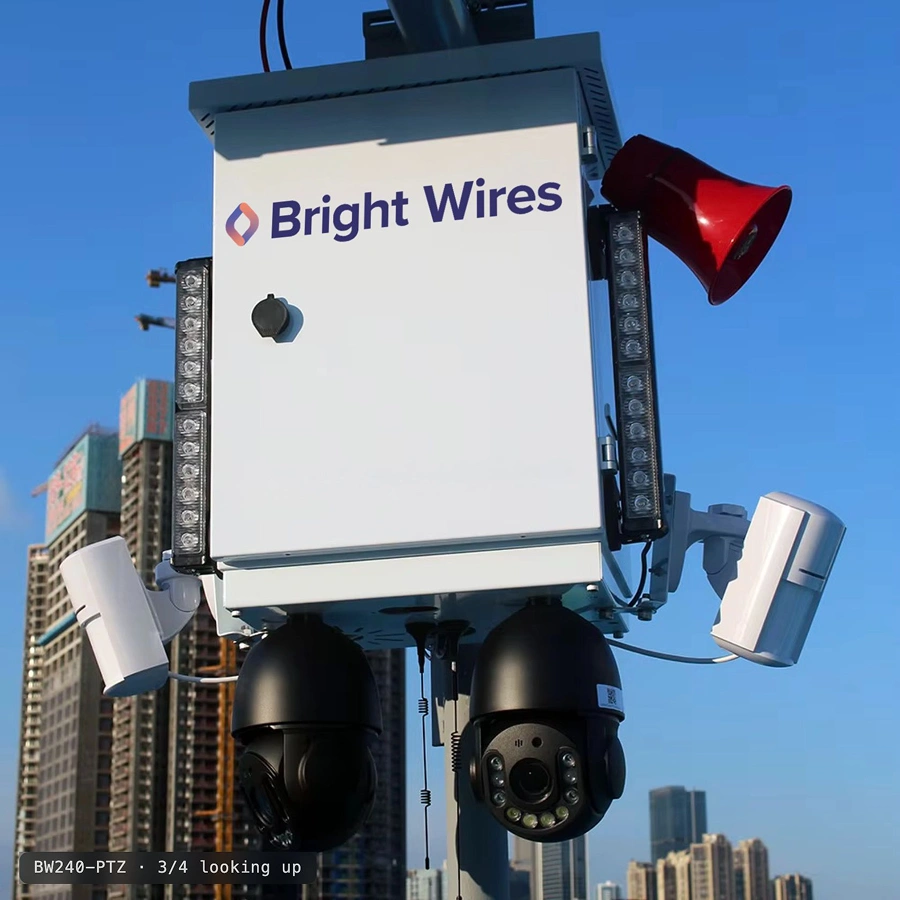

The Bright Wires BW200-A2PSAFL2025 is a fully self-contained, off-grid solar security and active deterrence system engineered for deployments where conventional power and network infrastructure are unavailable. Combining dual 8MP 30x optical zoom PTZ cameras (Sony IMX415 sensor), a 200 W solar power assembly, integrated 4G/WiFi connectivity, a 1,024 GB SSD Hikvision NVR recorder, dual PIR motion detectors, red/blue strobe alarm lights, and a pre-recorded speaker — all within a rugged outdoor enclosure — this system delivers enterprise-grade surveillance and autonomous intruder deterrence at any remote location, without monthly cloud fees or complex network configuration.
Model: BW200-A2PSAFL2025 (BS200-A2P4K30X-1T-SA-FL-HIK)

Key Features & Highlights

• Fully off-grid operation — runs on solar power with no external electrical connection required
• Dual 8MP PTZ cameras with 30x optical zoom (3.2–96 mm) and 100 m IR night vision
• Active deterrence — dual PIR motion detectors trigger red/blue alarm strobes and pre-recorded speaker automatically
• Smart Dual-Light technology with full-colour night imaging
• 200 W solar power system with aluminium alloy bracket and rugged outdoor equipment enclosure
• Integrated 4G & WiFi (802.11 N/G/B) connectivity with multi-band global carrier support — one SIM card required
• 1,024 GB solid-state Hikvision NVR — faster access, no cloud storage fees, continuous or motion-triggered recording
• Hik-Connect app for remote live view and management — P2P, no DDNS setup required
• Free 64-channel VMS software for PC included
• Pan 0–360° (endless) / Tilt 0–90° PTZ control with H.265+ compression
• Compatible with Lead-Acid, Li-Ion 18650, and LiFePO4 battery chemistries

Camera & Imaging

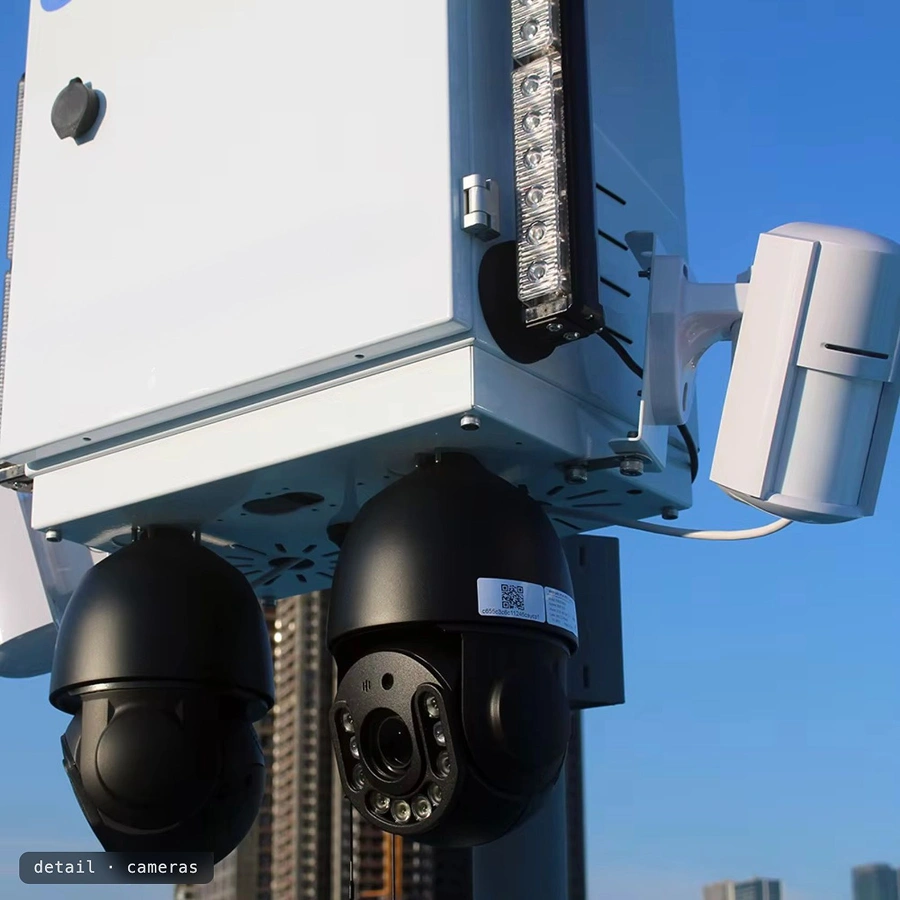

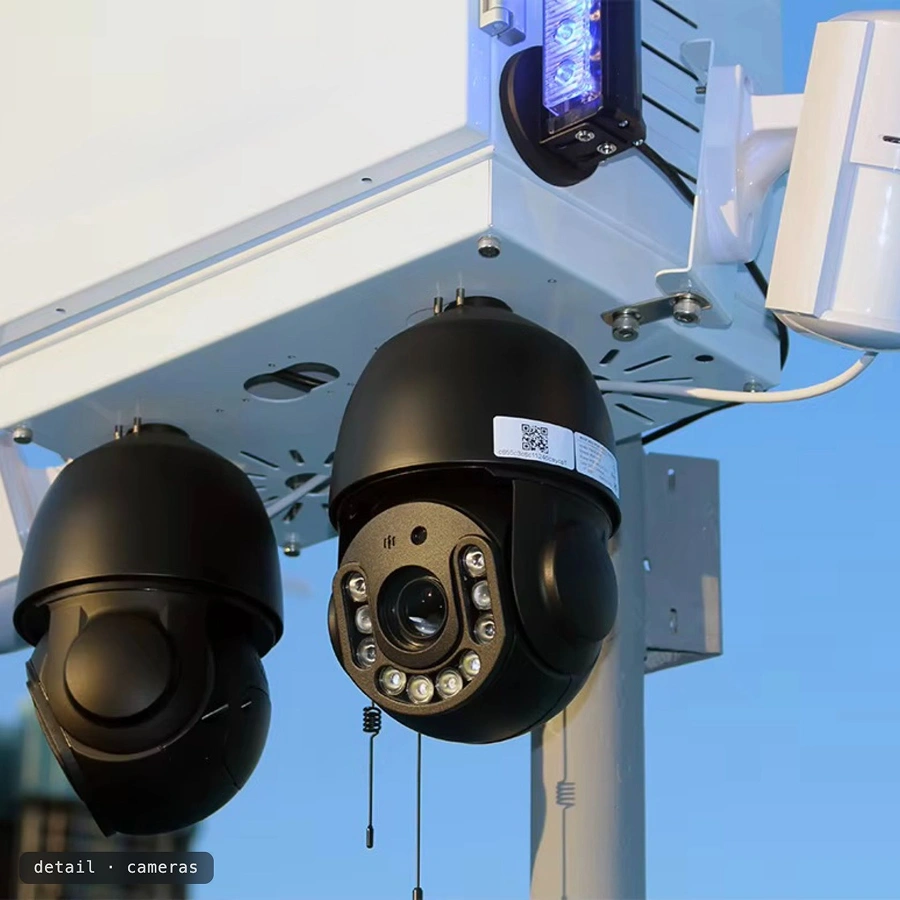

Each unit ships with two independently mounted SZGOING 8MP PTZ cameras equipped with Sony IMX415 sensors and 30x optical zoom lenses (3.2–96 mm), enabling detailed identification at extended range. The Smart Dual-Light system combines infrared and white-light illumination, maintaining full-colour imagery at night without the need for external lighting. The H.265+ codec delivers high-resolution 4K (8 MP) video at significantly smaller file sizes than legacy standards, extending the effective storage capacity of the onboard SSD. Endless 360° pan rotation ensures no blind spot, while tilt extends to 90°.

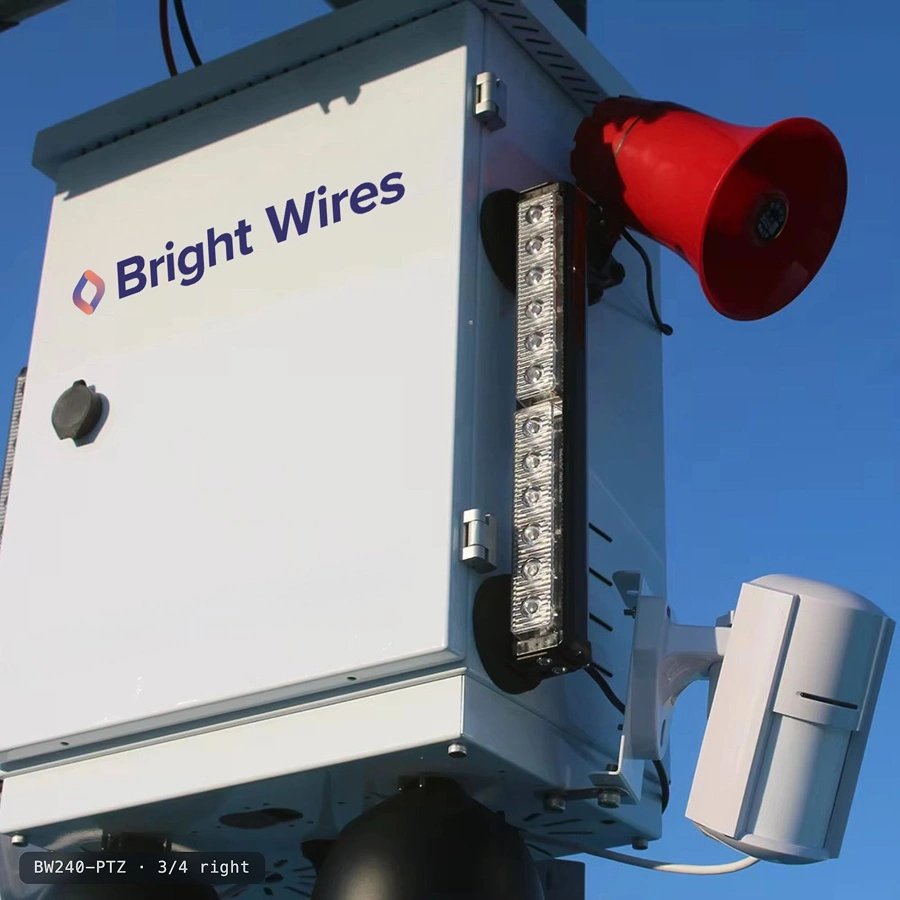

Active Deterrence & Alarm System

The BW200-A2PSAFL2025 goes beyond passive surveillance. Two outdoor PIR motion detectors continuously monitor the surrounding area. Upon detection, the system automatically activates dual red/blue LED alarm strobes and a pre-recorded speaker, providing an immediate and highly visible deterrent effect before an incident escalates. An optional laser light output is also available. All alarm events are logged and can trigger recording and push notifications to the Hik-Connect app.

Connectivity & Remote Access

The BW200-A2PSAFL2025 supports simultaneous 4G cellular and 2.4 GHz WiFi (802.11 N/G/B) connectivity, with a 12 dBi 4G antenna providing reliable signal in challenging environments. Carrier bands cover Europe, Asia, Africa, North America, and Australia. Only one SIM card is required for the entire system. Remote viewing and management are accomplished via the Hik-Connect app — simply enter the camera serial number and password. No static IP, port forwarding, or DDNS configuration is needed.

On-Board Storage & Recording

The integrated 1,024 GB solid-state Hikvision NVR eliminates dependency on cloud subscriptions and rotating hard-disk media. Recording can be configured in four priority modes: Manual, Alarm-triggered, Motion Detection, and Scheduled. The SSD’s fast read/write speeds enable smooth 4K playback directly from the device, and the system remains fully operational during network outages, continuously writing footage to local storage. Free 64-channel VMS software for PC is included for centralized management.

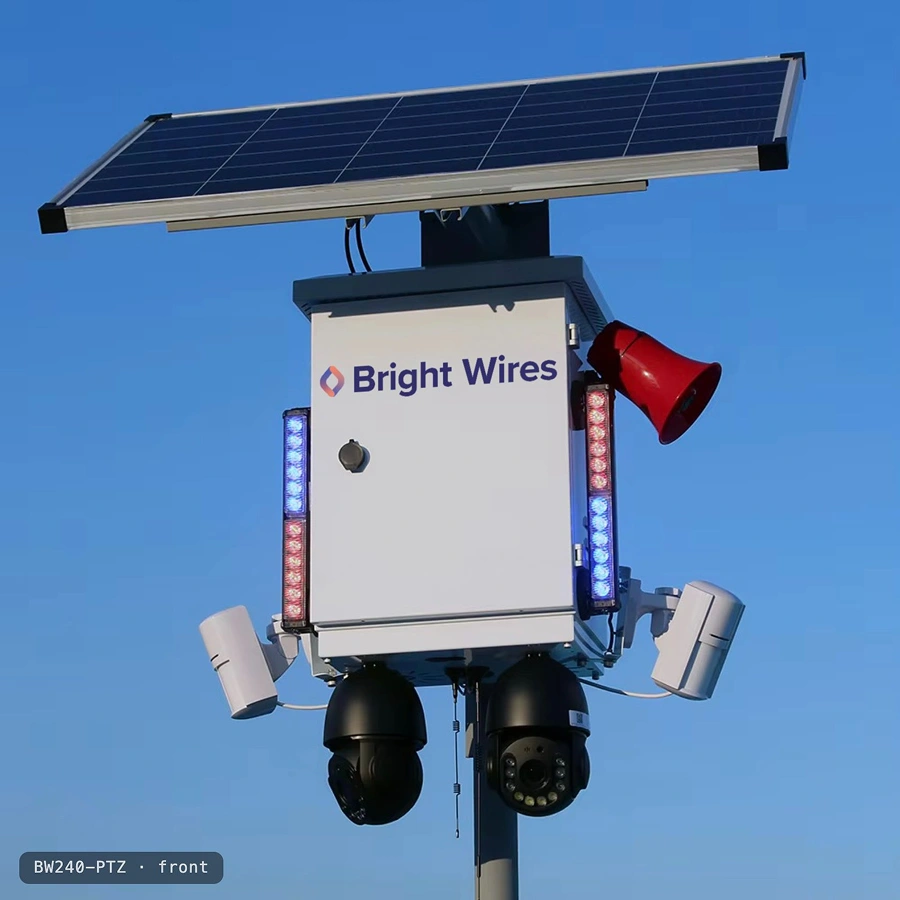

Solar Power System

Two 100 W monocrystalline solar panels (total 200 W) supply continuous power during daylight hours while simultaneously charging the battery bank. The aluminium alloy mounting bracket is corrosion-resistant and engineered for year-round outdoor exposure. A 20 A solar charge controller manages charge cycles to maximise battery longevity. The system is compatible with Lead-Acid, 18650 lithium-ion, and LiFePO4 chemistries; LiFePO4 at 12.8 V / 50–100 Ah is recommended for optimal cycle life and cold-weather performance.

What’s Included

• 30x Optical Zoom Sony IMX415 PTZ camera x 2
• 100 W aluminium alloy solar panel & bracket kit x 2
• Server enclosure x 1 (pre-installed 4G/WiFi network module, 1,024 GB SSD Hikvision NVR, power control system)
• PIR outdoor motion detector x 2
• Red/Blue LED alarm strobe light x 2
• Pre-recorded speaker x 1
• WiFi antenna x 1 | 4G antenna x 1
• SIM card x 1 (active data plan required; customer’s own SIM may be substituted)
• Pole adapter x 1 kit
• Installation tool kit x 1
