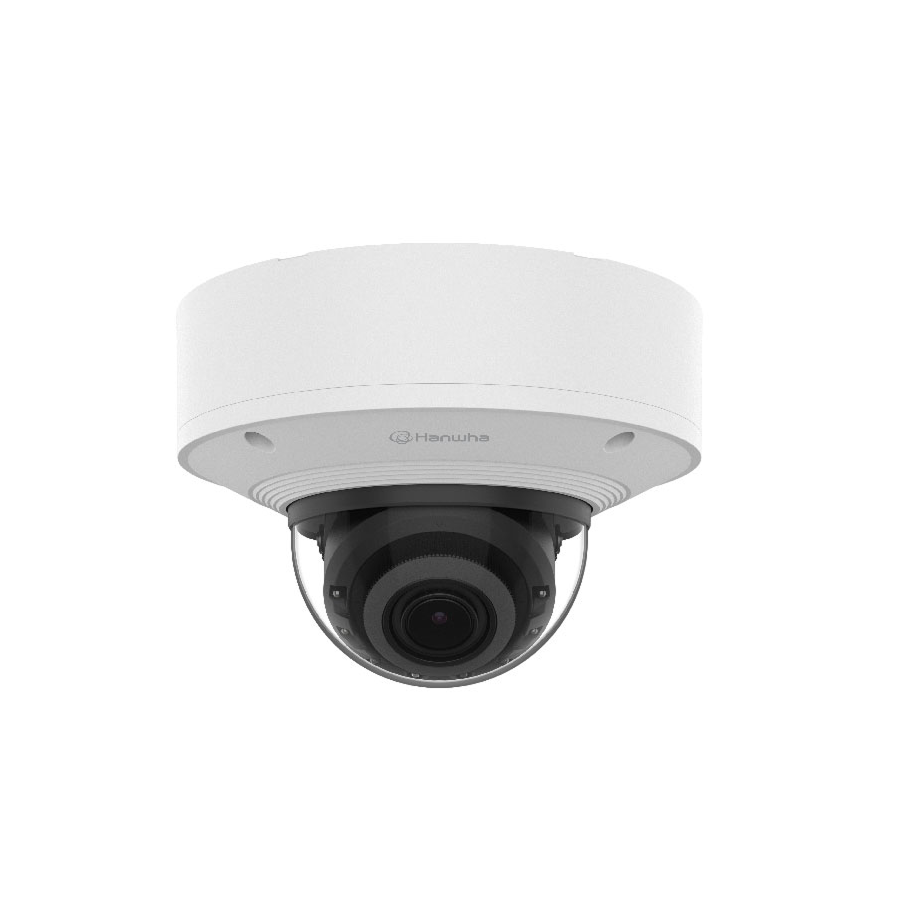

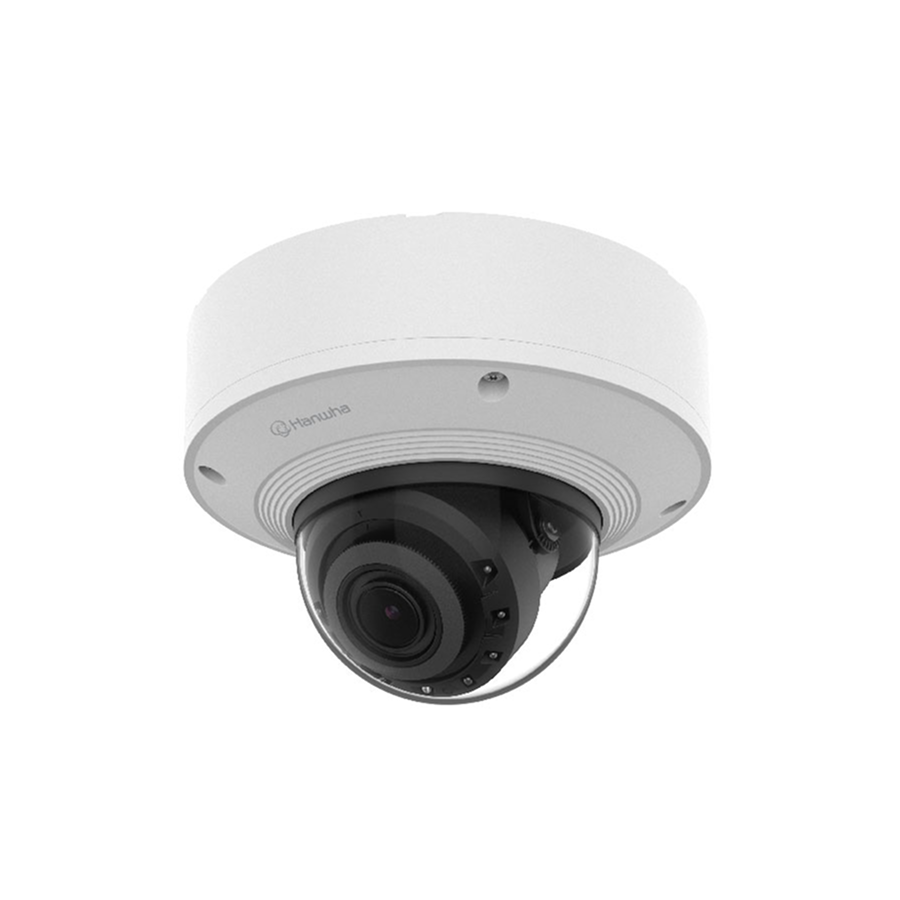

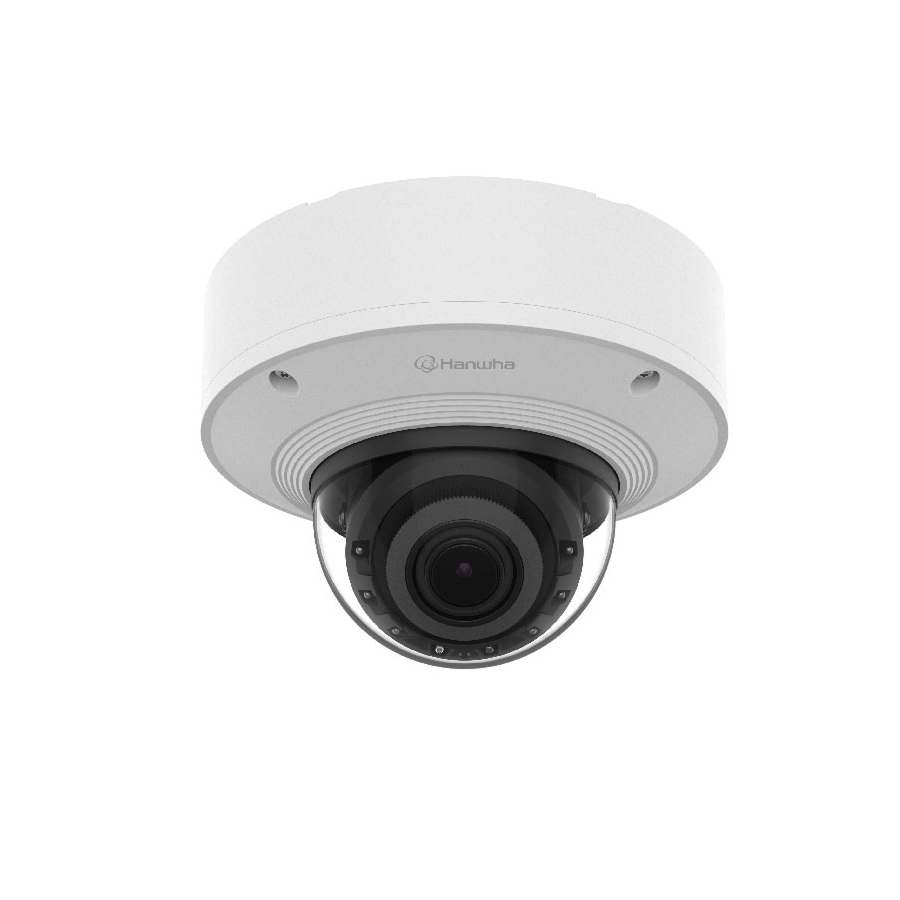

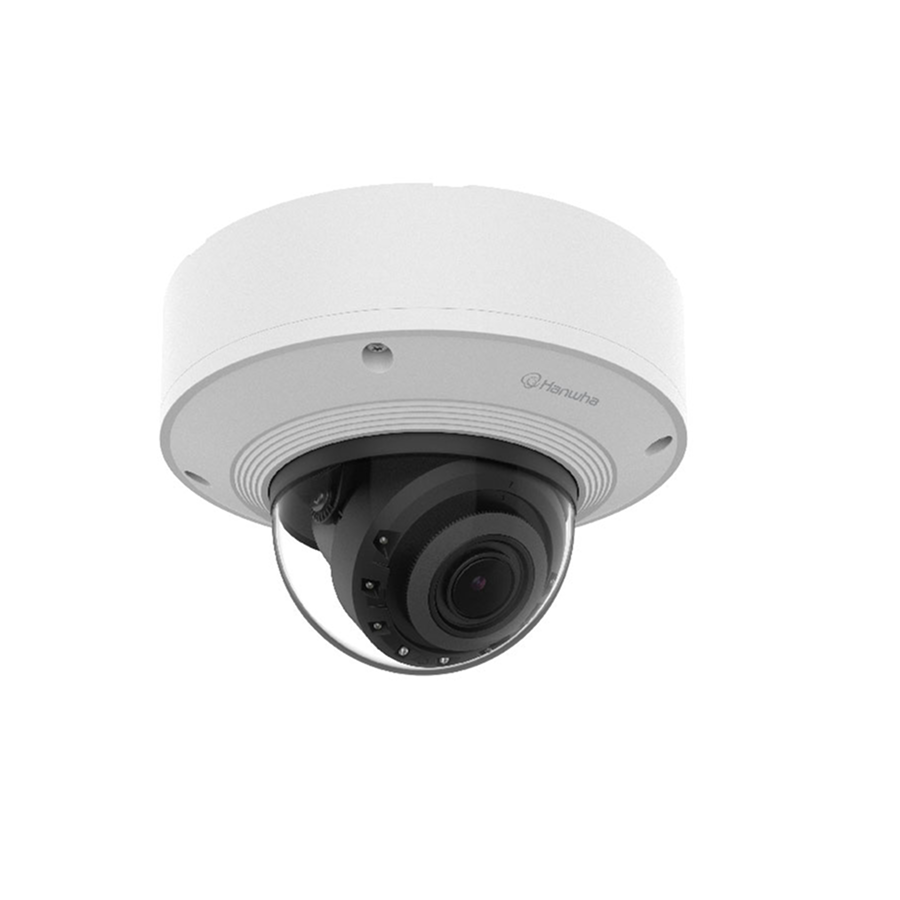

XNV-A9085R
8MP AI IR Modular Vandal Dome Camera featuring Dual NPU for AI-based image enhancement and magnetic modular design.
Product Overview
8MP AI IR Modular Vandal Dome Camera featuring Dual NPU for AI-based image enhancement and magnetic modular design.
Main Features
- Powered by WN9 with X-Plus design
- Outdoor network AI IR dome camera
- 8MP resolution at 30 FPS
- 4.4–9.3mm (2.1x) motorized varifocal lens with 113°–47° field of view
- H.265, H.264, and MJPEG codec support
- IR viewable length up to 50 m (164.04 ft)
- USB-C port for easy installation
- Day and night operation with ICR
- ExtremeWDR (120 dB)
- IVA events based on AI engine
General Information
Name: Hanwha XNV-A9085R 8MP IR Outdoor Vandal Dome AI Camera, 4.4–9.3mm Lens, White
Category: Hanwha Vision, Video Surveillance, IP Cameras, Dome Cameras
UPC Code: 8801089244673
Country of Origin: Vietnam. Country of origin is subject to change.
| Camera | |
|---|---|
| Image Sensor | 1/2.7″ Progressive Scan CMOS |
| Max. Resolution | 2560 × 1920 |
| Min. Illumination | Color: 0.017 Lux @ (F2.25, AGC ON), B/W: 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Lens | |
| Lens Type | Fixed focal lens, 1.05 mm |
| Focal Length & FOV | 1.05 mm, horizontal FOV: 180°, vertical FOV: 180°, diagonal FOV: 180° |
| Focus | Fixed |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Aperture | F2.25 |
| Depth of Field | 0.1 m to ∞ |
| DORI | |
| DORI | D: 21 m, O: 8 m, R: 4 m, I: 2 m |
| Illuminator | |
| Supplement Light Type | IR |
| Supplement Light Range | Up to 8 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
| Video | |
| Main Stream |
50 Hz: 25 fps (2560 × 1920, 2048 × 1536, 1280 × 960) 60 Hz: 30 fps (2560 × 1920, 2048 × 1536, 1280 × 960) |
| Sub-Stream |
50 Hz: 25 fps (640 × 480) 60 Hz: 30 fps (640 × 480) |
| Video Compression |
Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline Profile, Main Profile, High Profile |
| H.265 Type | Main Profile |
| Region of Interest (ROI) | 1 fixed region for main stream |
| Audio | |
| Audio Type | Mono sound |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC |
| Audio Sampling Rate | 8 kHz/16 kHz |
| Network | |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS |
| Simultaneous Live View | Up to 6 channels |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| General | |
| Power |
12 VDC ± 25%, 0.5 A, max. 6 W PoE: IEEE 802.3af, Class 3, max. 7.5 W |
| Material | ADC12 |
| Dimension | Ø119.9 mm × 41.2 mm (Ø4.7″ × 1.6″) |
| Weight | Approx. 320 g (0.7 lb.) |
| Approval | |
| EMC |
CE-EMC: EN 55032:2015 RCM: AS/NZS CISPR 32:2015 IC: ICES-003 Issue 7 KC: KN32:2015, KN35:2015 |
| Safety |
UL 62368-1 IEC 62368-1:2014+A11 EN 62368-1:2014/A11:2017 |
| Environment | CE-RoHS: 2011/65/EU |
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
