4 MP AcuSense Fixed Turret Network Camera

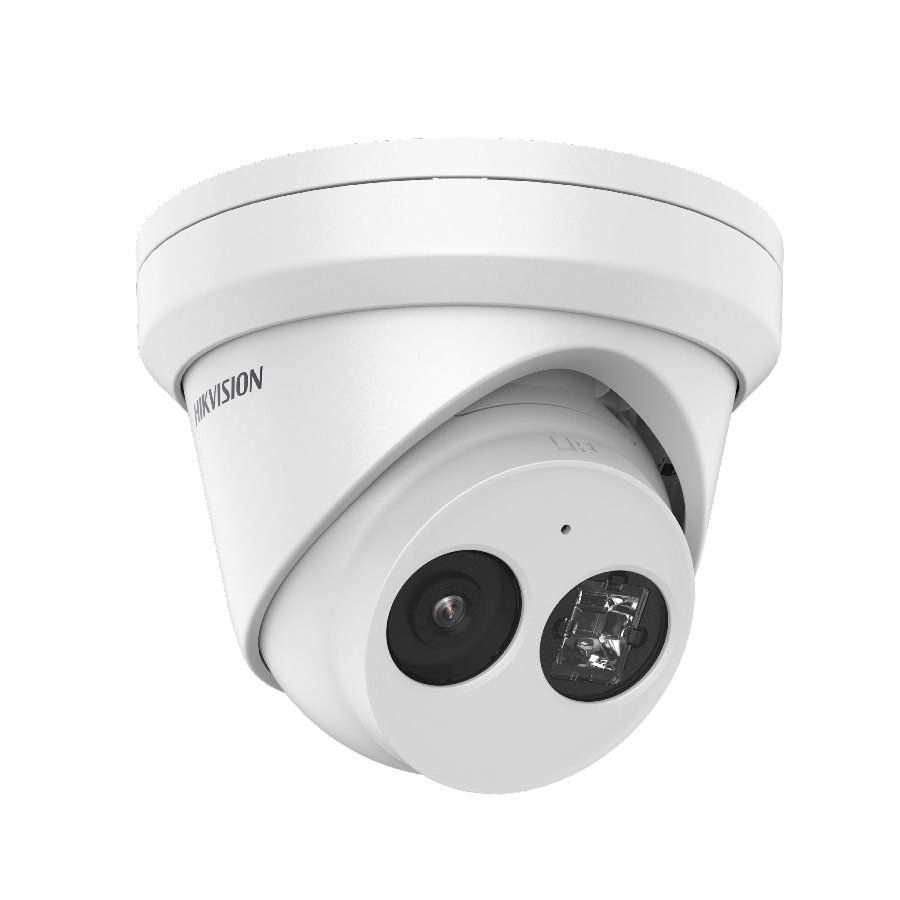

4 MP AcuSense Fixed Turret Network Camera - Image 2

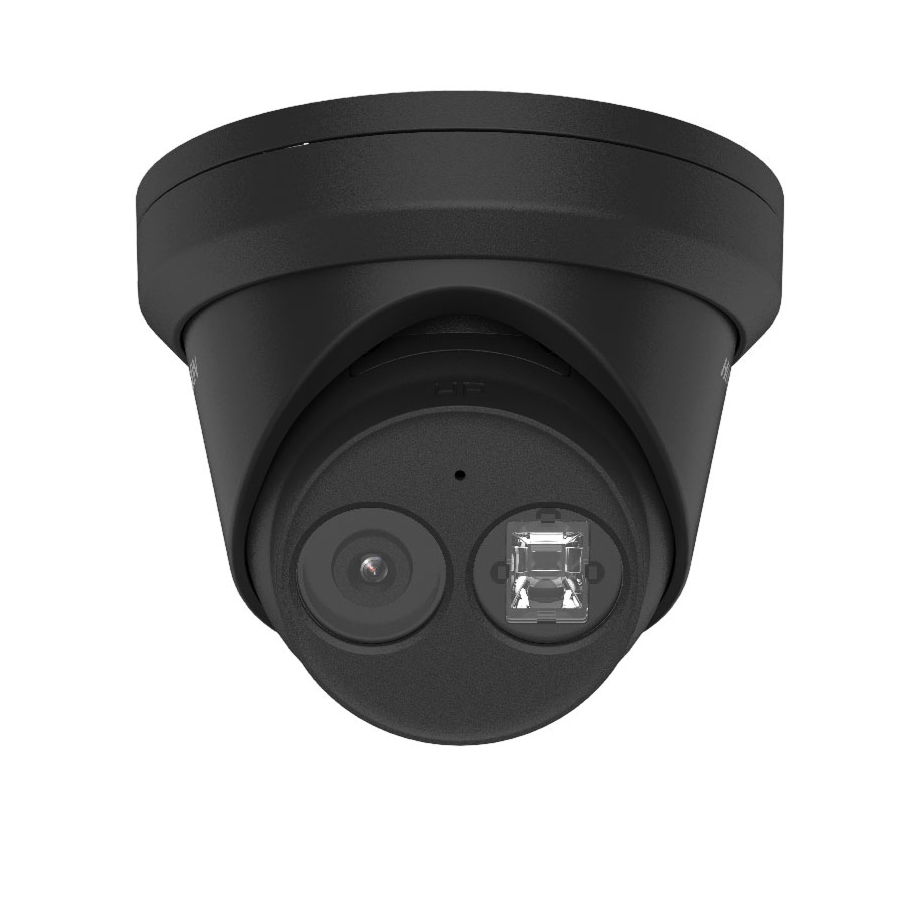

4 MP AcuSense Fixed Turret Network Camera - Image 3

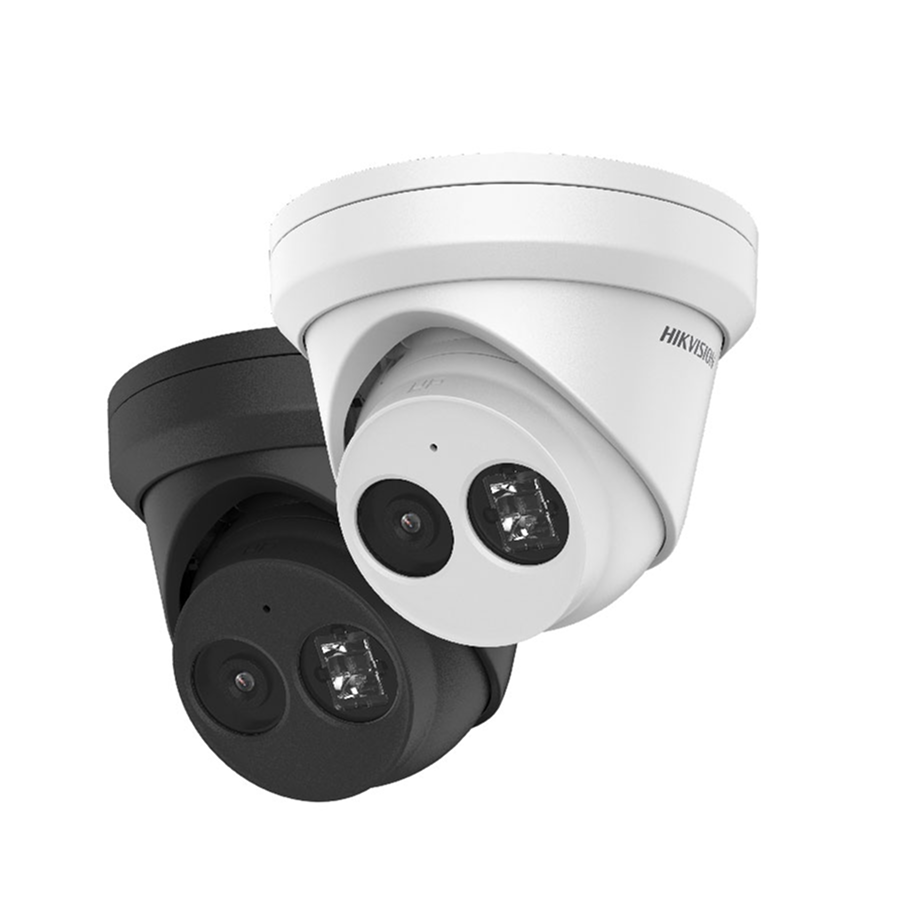

4 MP AcuSense Fixed Turret Network Camera

  • High quality imaging with 4 MP resolution
  • Clear imaging against strong backlight due to 120 dB WDR technology
  • Efficient H.265+ compression technology
  • -U: Built-in arrayed dual-microphone for real-time audio security
  • Water and dust resistant (IP67)
  • Focus on human and vehicle targets classification based on deep learning
Request a Quote

Product Overview

  • High quality imaging with 4 MP resolution
  • Clear imaging against strong backlight due to 120 dB WDR technology
  • Efficient H.265+ compression technology
  • -U: Built-in arrayed dual-microphone for real-time audio security
  • Water and dust resistant (IP67)
  • Focus on human and vehicle targets classification based on deep learning
Camera
Image Sensor 1/3″ Progressive Scan CMOS
Max. Resolution 2688 × 1520
Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with IR on
Shutter Time 1/3 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
Lens
Focal Length & FOV 2.8 mm, horizontal FOV 103°, vertical FOV 55°, diagonal FOV 122°
4 mm, horizontal FOV 84°, vertical FOV 45°, diagonal FOV 100°
Lens Mount M12
Iris Type Fixed
Aperture F1.6
DORI
DORI 2.8 mm: D: 67 m, O: 26 m, R: 13 m, I: 6 m
4 mm: D: 80 m, O: 31 m, R: 16 m, I: 8 m
Illuminator
Supplement Light Type IR
Supplement Light Range Up to 30 m
Smart Supplement Light Yes
IR Wavelength 850 nm
Video
Main Stream 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Video Compression Main stream: H.265/H.264/H.264+/H.265+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
Video Bit Rate 32 Kbps to 8 Mbps
Bit Rate Control CBR/VBR
Audio
Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Network
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, WebSocket, WebSockets
API ONVIF (Profile S, Profile G), ISAPI, SDK
Client iVMS-4200, Hik-Connect, Hik-Central
Wide Dynamic Range (WDR) 120 dB
SNR ≥ 52 dB
Image Enhancement BLC, HLC, 3D DNR
Interface
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage Built-in microSD, up to 512 GB
Event
Basic Event Motion detection (human and vehicle targets classification), video tampering alarm, exception
Smart Event Line crossing detection, intrusion detection, face detection
General
Power 12 VDC ± 25%, max. 6 W
PoE: 802.3af, Class 3, max. 7 W
Dimension Ø127.3 × 95.9 mm
Weight Approx. 600 g (1.3 lb.)
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F), Humidity 95% or less
Approval
EMC FCC, CE-EMC, RCM, IC, KC
Safety UL, CB, CE-LVD, BIS
Environment CE-RoHS(2011/65/EU),WEEE(2012/19/EU), Reach(Regulation(EC)No 1907/2006)
Protection IP67 (IEC 60529-2013)
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
