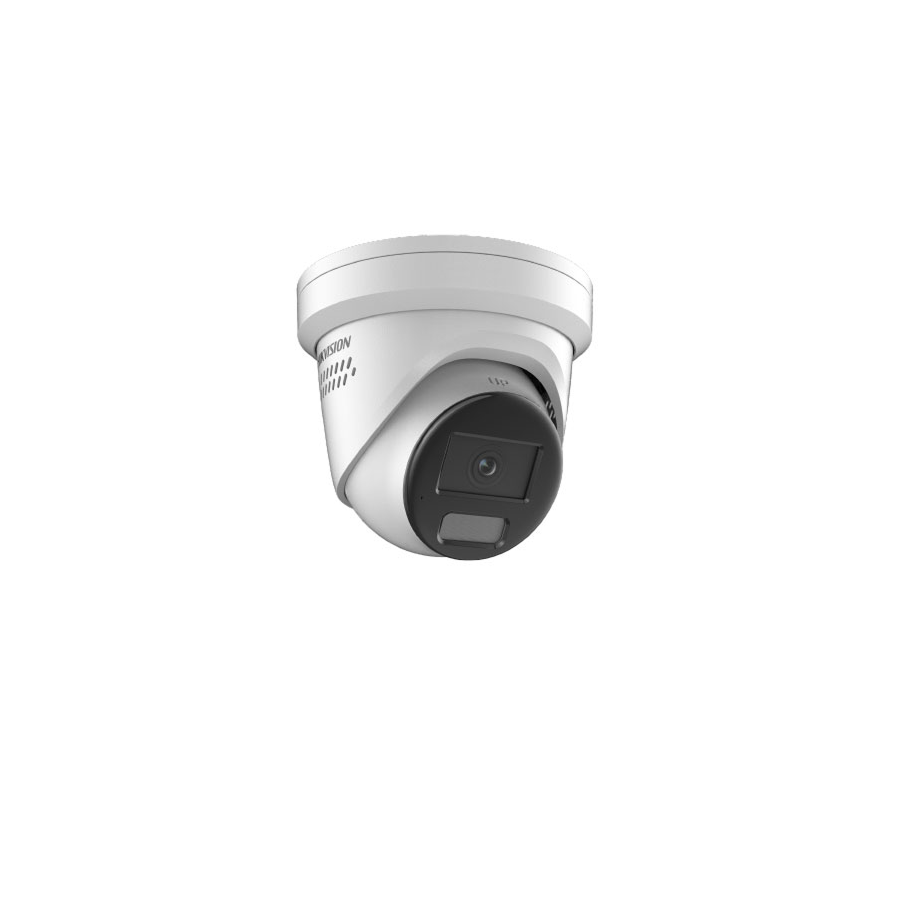

4 MP ColorVu Strobe Light and Audible Warning Fixed Turret Network Camera
4 MP ColorVu Strobe Light and Audible Warning Fixed Turret Network Camera - Image 2

4 MP ColorVu Strobe Light and Audible Warning Fixed Turret Network Camera

  • High quality imaging with 4 MP resolution
  • Efficient H.265+ compression technology
  • Clear imaging against strong backlight due to 130 dB WDR technology
  • Focus on human and vehicle targets classification based on deep learning
  • 24/7 colorful imaging
  • Active strobe light and audio alarm to warn intruders off
  • Provide real-time security via built-in two-way audio
  • Audio and alarm interface available
  • Water and dust resistant (IP67)

DS-2CD2347G2-LSU/SL

Request a Quote

Product Overview

  • High quality imaging with 4 MP resolution
  • Efficient H.265+ compression technology
  • Clear imaging against strong backlight due to 130 dB WDR technology
  • Focus on human and vehicle targets classification based on deep learning
  • 24/7 colorful imaging
  • Active strobe light and audio alarm to warn intruders off
  • Provide real-time security via built-in two-way audio
  • Audio and alarm interface available
  • Water and dust resistant (IP67)

Camera

Image Sensor 1/1.8″ Progressive Scan CMOS
Max. Resolution 2688 × 1520
Min. Illumination Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
Shutter Time 1/3 s to 1/100,000 s
Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°

Lens

Focal Length & FOV 2.8 mm, Horizontal FOV 111.9°, Vertical FOV 60.5°, Diagonal FOV 133.6°

4 mm, Horizontal FOV 95.2°, Vertical FOV 50.6°, Diagonal FOV 114.7°

Lens Mount M16
Iris Type Fixed
Aperture F1.0
Depth of Field 2.8 mm: 3.1 m to ∞

4 mm: 5.4 m to ∞

DORI

DORI 2.8 mm, D: 58.2 m, O: 23.1 m, R: 11.6 m, I: 5.8 m

4 mm, D: 77 m, O: 30.5 m, R: 15.4 m, I: 7.7 m

Illuminator

Supplement Light Type White light
Supplement Light Range Up to 30 m
Smart Supplement Light Yes

Video

Main Stream 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

Video Compression Main stream: H.265/H.264/H.265+/H.264+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
Video Bit Rate 32 Kbps to 8 Mbps
Bit Rate Control CBR/VBR

Audio

Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering Yes

Network

Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, IPv4, IPv6, UDP, SSL/TLS, PPPoE, SNMP, ARP, WebSocket
Simultaneous Live View Up to 6 channels
API ONVIF (PROFILE S, G, T), ISAPI, SDK
User/Host Up to 32 users
Client iVMS-4200, Hik-Connect, Hik-Central


Image Parameters Switch Yes
Day/Night Switch Auto, Schedule
Wide Dynamic Range (WDR) 130 dB
SNR ≥ 52 dB
Image Enhancement BLC, HLC, 3D DNR

Interface

Ethernet Interface 1 RJ45 10/100 M self-adaptive Ethernet port
On-Board Storage microSD/microSDHC/microSDXC card support up to 512 GB
Built-in Microphone Yes
Built-in Speaker 1.2 W, 10 cm: 95 dB
Reset Key Yes

Event

Basic Event Motion detection, video tampering alarm, exception
Smart Event Line crossing, intrusion detection, region entrance/exiting detection, scene change detection
Linkage Upload to NAS/memory card/FTP, notify surveillance center, trigger recording, email, strobe light, audible warning

Deep Learning Function

Face Capture Yes

General

Power 12 VDC ±25%, max. 6.5 W

PoE: 802.3af, Class 3, max. 8 W

Dimension Ø138.3 mm × 115.4 mm
Weight Approx. 760 g
Storage Conditions -30 °C to 60 °C, Humidity 95% or less
General Function Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter

Approval

EMC FCC, CE-EMC, RCM, IC VoC, KC compliant
Safety UL, CB, CE-LVD, LOA compliant
Environment CE-RoHS, WEEE, Reach compliant
Protection IP67: IEC 60529-2013
*Product performance is based on testing in a controlled environment. Your results may vary due to external and environmental factors.
